1915-3-100-08

Active

Kendall Howard

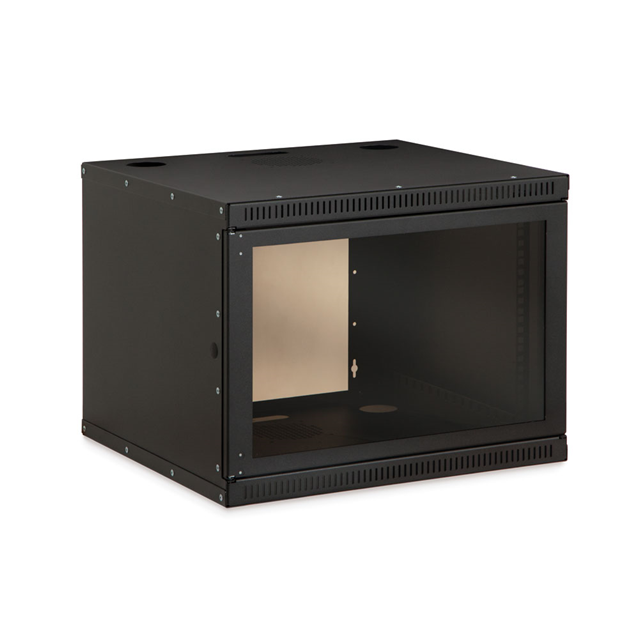

8U SECURITY WALL RACK ENCLOSURE

Deep-Dive with AI

Search across all available documentation for this part.

Documents1915-3-100-08 Instr Datasheet

1915-3-100-08

Active

Kendall Howard

8U SECURITY WALL RACK ENCLOSURE

Deep-Dive with AI

Documents1915-3-100-08 Instr Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 519.99
		2	$ 514.99
		4	$ 509.99

Description

General part information

1915-3 Series

Cold Roll Steel (CRS) Cabinet Rack Enclosed, Bottom, Front, Sides, Top 22.220" L x 20.650" W x 17.230" H (564.39mm x 524.51mm x 437.64mm) Black

Documents

Technical documentation and resources

1915-3-100-08 Instr

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1915-3-100-08	1915-3 Series

Color	Black	Black
Dimensions - Overall	-	790.45 mm
Dimensions - Overall	-	304.8 mm
Dimensions - Overall [x]	564.39 mm	546.1 - 564.39 mm
Dimensions - Overall [x]	22.22 in	21.5 - 22.22 "
Dimensions - Overall [y]	524.51 mm	304.8 - 524.51 mm
Dimensions - Overall [y]	20.65 in	12 - 20.65 in
Dimensions - Overall [z]	437.64 mm	437.64 - 1012.95 mm
Dimensions - Overall [z]	17.23 in	17.23 - 39.88 "
Door	Acrylic	Doorless, Acrylic
Material	Cold Roll Steel (CRS)	Cold Roll Steel (CRS)
Mounting Rails	One Pair	Two Pair, One Pair
Number of Units	8U	8U
Number of Units	-	12 - 21 U
Style	Bottom, Enclosed, Sides, Front, Top	Open Rack, Double Frame, Bottom, Enclosed, Sides, Front, Top, Single Frame, Open Rack
Type	Cabinet Rack	Open Rack, Cabinet Rack
Ventilation	Vented	Non-Vented, Vented
Weight	44.3 lbs	10.3 - 44.3 lbs
Weight	20 kg	4.7 - 20 kg

1915-3 Series

16U 18" V-LINE FIXED WALL RACK

Part	Type	Mounting Rails	Door	Ventilation	Weight	Weight	Dimensions - Overall [z]	Dimensions - Overall [z]	Dimensions - Overall [x]	Dimensions - Overall [y]	Dimensions - Overall [y]	Dimensions - Overall [x]	Material	Color	Style	Number of Units	Dimensions - Overall [z]	Dimensions - Overall [y]	Number of Units
Kendall Howard 1915-3-301-16	Open Rack	Two Pair	Doorless	Non-Vented	6.1 kg	13.5 lbs	790.7 mm	31.13 "	21.5 "	18 in	457.2 mm	546.1 mm	Cold Roll Steel (CRS)	Black	Open Rack, Double Frame	16 U
Kendall Howard 1915-3-301-21	Open Rack	Two Pair	Doorless	Non-Vented	7 kg	15.5 lbs	1012.95 mm	39.88 in	21.5 "	18 in	457.2 mm	546.1 mm	Cold Roll Steel (CRS)	Black	Open Rack, Double Frame	21 U
Kendall Howard 1915-3-200-12	Cabinet Rack	Two Pair	Doorless	Vented	17 kg	37.5 lbs							Cold Roll Steel (CRS)	Black	Bottom, Enclosed, Front, Sides, Top	12 U
Kendall Howard 1915-3-300-16	Open Rack	Two Pair	Doorless	Non-Vented	5.4 kg	12 lbs		31.12 "	21.5 "	12 in		546.1 mm	Cold Roll Steel (CRS)	Black	Open Rack, Double Frame	16 U	790.45 mm	304.8 mm
Kendall Howard 1915-3-300-12	Open Rack	Two Pair	Doorless	Non-Vented	4.7 kg	10.3 lbs	612.9 mm	24.13 in	21.5 "	12 in	304.8 mm	546.1 mm	Cold Roll Steel (CRS)	Black	Open Rack, Double Frame	12 U
Kendall Howard 1915-3-100-08	Cabinet Rack	One Pair	Acrylic	Vented	20 kg	44.3 lbs	437.64 mm	17.23 in	22.22 in	20.65 in	524.51 mm	564.39 mm	Cold Roll Steel (CRS)	Black	Bottom, Enclosed, Front, Sides, Top				8U
Kendall Howard 1915-3-300-21	Open Rack	Two Pair	Doorless	Non-Vented	6.2 kg	13.8 lbs	1012.95 mm	39.88 in	21.5 "	12 in	304.8 mm	546.1 mm	Cold Roll Steel (CRS)	Black	Open Rack, Double Frame	21 U
Kendall Howard 1915-3-301-12	Open Rack	Two Pair	Doorless	Non-Vented	5.4 kg	12 lbs	612.9 mm	24.13 in	21.5 "	18 in	457.2 mm	546.1 mm	Cold Roll Steel (CRS)	Black	Open Rack, Double Frame	12 U
Kendall Howard 1915-3-001-08	Open Rack	Two Pair	Doorless	Non-Vented	5 kg	11.1 lbs							Cold Roll Steel (CRS)	Black	Open Rack, Single Frame				8U
