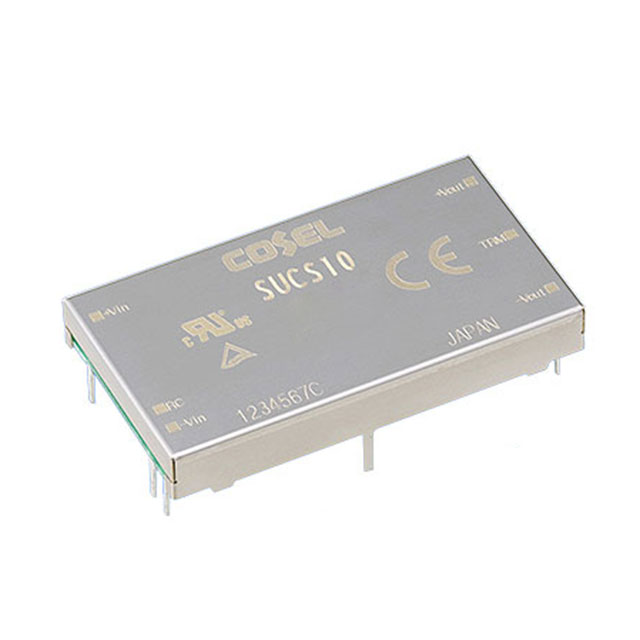

SUCS100512C-C

Active

Cosel USA, Inc.

DC DC CONVERTER 12V 11W

Search across all available documentation for this part.

Active

Cosel USA, Inc.

DC DC CONVERTER 12V 11W

Technical Specifications

Parameters and characteristics for this part

Specification	SUCS100512C-C

Applications	ITE (Commercial)
Current - Output (Max) [Max]	900 mA
Efficiency	83 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	11 W
Size / Dimension [x]	40.2 mm
Size / Dimension [x]	1.58 "
Size / Dimension [y]	21.5 mm
Size / Dimension [y]	0.85 "
Size / Dimension [z]	0.28 "
Size / Dimension [z]	7 mm
Type	Isolated Module, Conformal Coated
Voltage - Input (Max) [Max]	9 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	500 V
Voltage - Output 1	12 V

Part	Voltage - Isolation	Voltage - Output 1	Voltage - Input (Max) [Max]	Efficiency	Type	Applications	Mounting Type	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Current - Output (Max) [Max]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Features	Power (Watts)
Cosel USA, Inc. SUCS100512C	500 V	12 V	9 V	85 %	Isolated Module	ITE (Commercial)	Through Hole	4.5 V	40.2 mm	0.28 "	7 mm	21.5 mm	0.85 "	1.58 "	6-DIP Module	900 mA	1	85 °C	-40 °C	OCP Remote On/Off
Cosel USA, Inc. SUCS100512C-C	500 V	12 V	9 V	83 %	Conformal Coated Isolated Module	ITE (Commercial)	Through Hole	4.5 V	40.2 mm	0.28 "	7 mm	21.5 mm	0.85 "	1.58 "	6-DIP Module	900 mA	1	85 °C	-40 °C		11 W
Cosel USA, Inc. SUCS100512BP	500 V	12 V	9 V	83 %	Isolated Module	ITE (Commercial)	Surface Mount	4.5 V	40.2 mm	0.28 "	7 mm	21.5 mm	0.85 "	1.58 "	6-SMD Module	900 mA	1	85 °C	-40 °C		11 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 41.56

General part information

Isolated Module, Conformal Coated DC DC Converter 1 Output 12V 900mA 4.5V - 9V Input
