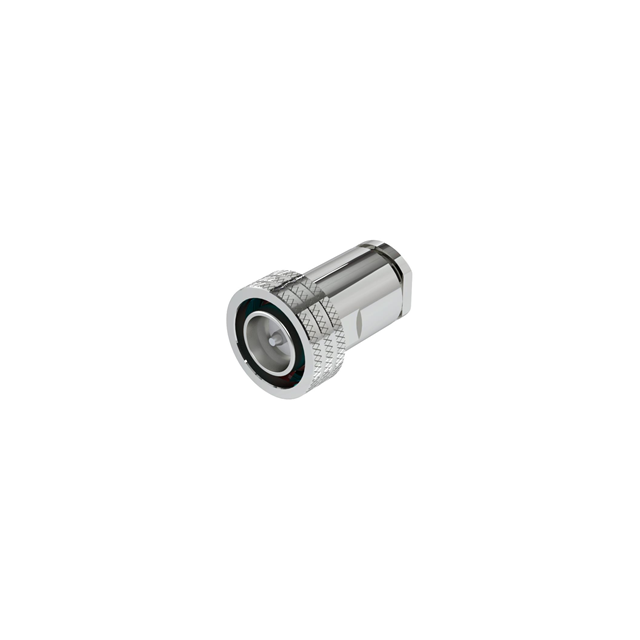

Specification	R183010007

Body Finish	White Bronze
Body Material	Brass
Cable Group	225, 216, 393, 214, RG-165, 213
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	4.3/10
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Frequency - Max	6000 MHz
Housing Color	Silver
Impedance	50 Ohm
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mating Cycles	100 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	90 °C
Operating Temperature (Min)	-55 °C
Shield Termination	Clamp
Voltage Rating	1000 V

R18301 Series

Part	Voltage Rating	Operating Temperature (Min)	Operating Temperature (Max)	Body Material	Body Finish	Mating Cycles	Dielectric Material	Center Contact Plating	Connector Type	Number of Ports	Impedance	Cable Group	Shield Termination	Housing Color	Frequency - Max	Connector Style	Center Contact Material	Ingress Protection Description	Ingress Protection IP Rating	Contact Termination	Fastening Type	Mounting Type
Radiall USA, Inc. R183010007	1000 V	-55 °C	90 °C	Brass	White Bronze	100 cycles	Polytetrafluoroethylene (PTFE)	Silver	Male Pin Plug	1	50 Ohm	213 214 216 225 393 RG-165	Clamp	Silver	6000 MHz	4.3/10	Brass	Dust Tight Waterproof	IP67	Solder	Push-Pull	Free Hanging (In-Line)
