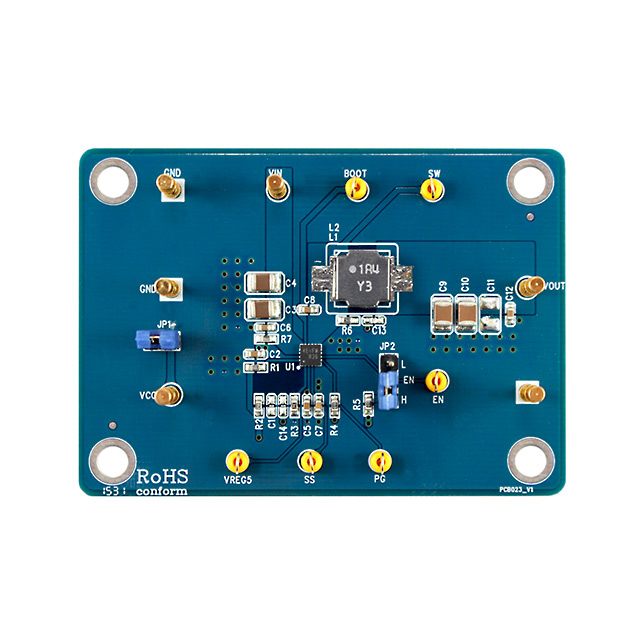

EVB_RT2855BHGQW

Active

Richtek USA Inc.

EVAL MODULE FOR RT2855BHGQW

Search across all available documentation for this part.

Active

Richtek USA Inc.

EVAL MODULE FOR RT2855BHGQW

Technical Specifications

Parameters and characteristics commom to parts in this series

IC REG BUCK ADJ 4A 16WQFN

Part	Topology	Voltage - Input (Min) [Min]	Voltage - Output (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Voltage - Input (Max) [Max]	Output Type	Current - Output	Function	Frequency - Switching	Synchronous Rectifier	Package / Case	Number of Outputs	Supplier Device Package	Main Purpose	Regulator Topology	Outputs and Type	Outputs and Type	Voltage - Output	Board Type	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Utilized IC / Part
Richtek USA Inc. RT2855BLGQW	Buck	4.5 V	7 V	Surface Mount	85 °C	-40 °C	Positive	18 V	Adjustable	4 A	Step-Down	650 kHz		16-WFQFN Exposed Pad	1	16-WQFN (3x3)
Richtek USA Inc. EVB_RT2855BHGQW										4 A		650 kHz					DC/DC, Step Down	Buck	Non-Isolated	1	1.05 V	Fully Populated	18 V	4.5 V	Board(s)	RT2855B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 44.90

General part information

RT2855B ACOT® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
