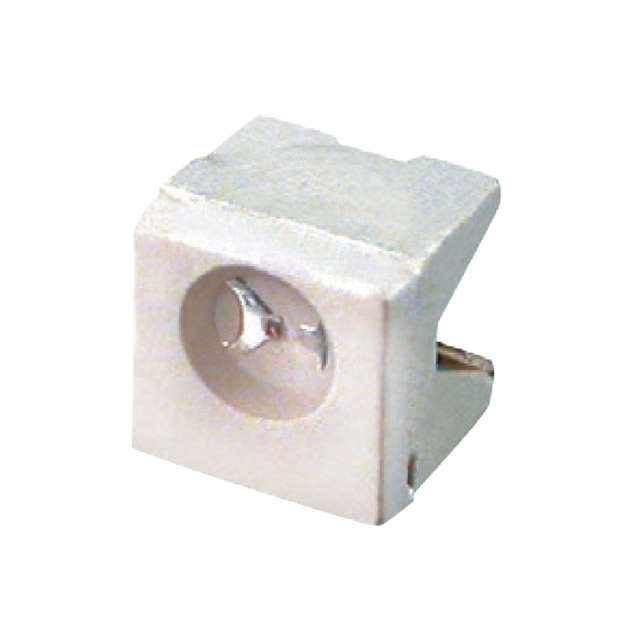

XZFBB67S
ActiveSunLED
LED BLUE CLEAR 2SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZFBB67S
ActiveSunLED
LED BLUE CLEAR 2SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZFBB67S |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 4 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.4 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 497 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, Boomerang |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [y] | 3.6 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
| Wavelength - Dominant | 470 nm |
| Wavelength - Peak | 465 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 500 | $ 0.30 | |
| 1000 | $ 0.23 | |||
| 2500 | $ 0.22 | |||
| 5000 | $ 0.21 | |||
| 12500 | $ 0.21 | |||
| 25000 | $ 0.20 | |||
| 50000 | $ 0.19 | |||
Description
General part information
XZFBB67 Series
Blue 470nm LED Indication - Discrete 3.3V 2-SMD, Boomerang
