1-104450-2
ActiveTE Connectivity AMP Connectors

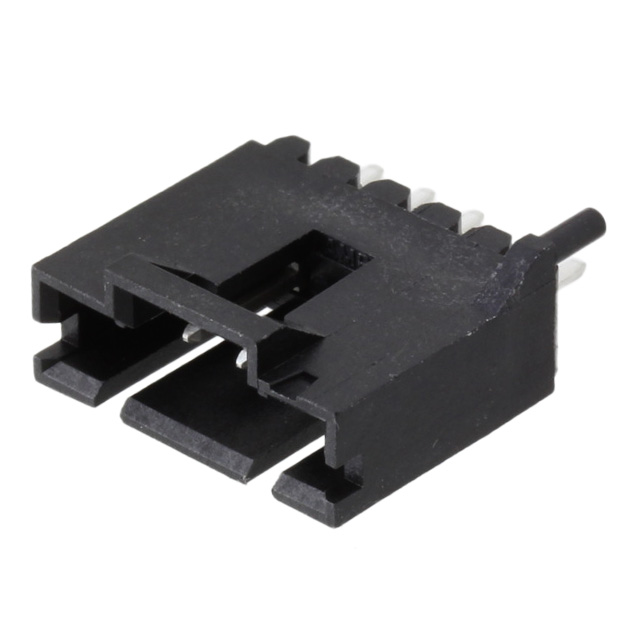

CONN HEADER VERT 5POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
1-104450-2
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 5POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-104450-2 | 104450 Series |
|---|---|---|
| Applications | Medical, General Purpose, Automotive, Telecommunications | Medical, General Purpose, Automotive, Telecommunications |
| Connector Type | Header | Header |
| Contact Finish - Mating | - | Tin-Lead |
| Contact Finish - Post | Tin | Tin-Lead, Tin |
| Contact Finish Thickness - Mating | 2.54 çm | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 5.84 mm | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in | 0.23 in |
| Contact Length - Post | 0.13 in | 0.13 in |
| Contact Length - Post | 3.3 mm | 3.3 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Latch Holder | Latch Holder |
| Features | Board Guide, Keying Slot | Board Guide, Keying Slot |
| Insulation Color | Black | Black |
| Insulation Height | 13.6 mm | 13.6 mm |
| Insulation Height | 0.535 in | 0.535 in |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | - | 4 - 9 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Overall Contact Length | 0.545 in | 0.545 in |
| Overall Contact Length | 13.84 mm | 13.84 mm |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder, Press-Fit | Solder, Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1330 | $ 1.80 | |
104450 Series
CONN HEADER VERT 6POS 2.54MM
| Part | Mounting Type | Termination | Insulation Height | Insulation Height | Number of Rows | Overall Contact Length | Overall Contact Length | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Style | Shrouding | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Applications | Contact Shape | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Material | Number of Positions | Fastening Type | Contact Length - Mating [x] | Contact Length - Mating | Connector Type | Insulation Color | Contact Material | Pitch - Mating | Pitch - Mating | Contact Type | Current Rating (Amps) | Number of Positions Loaded | Features | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 104450-5 | Through Hole | Press-Fit, Solder | 13.6 mm | 0.535 in | 1 | 0.545 in | 13.84 mm | Tin-Lead | -65 ░C | 105 ░C | Board to Board, Cable | Shrouded - 4 Wall | 2.54 µm | 100 µin | 0.13 in | 3.3 mm | UL94 V-0 | Automotive, General Purpose, Medical, Telecommunications | Square | 2.54 çm | 100 çin | Thermoplastic | 6 | Latch Holder | 0.23 in | 5.84 mm | Header | Black | Brass | 0.1 in | 2.54 mm | Male Pin | 3 A | All | Board Guide, Keying Slot | Tin-Lead |
TE Connectivity AMP Connectors 104450-8 | Through Hole | Press-Fit, Solder | 13.6 mm | 0.535 in | 1 | 0.545 in | 13.84 mm | Tin-Lead | -65 ░C | 105 ░C | Board to Board, Cable | Shrouded - 4 Wall | 2.54 µm | 100 µin | 0.13 in | 3.3 mm | UL94 V-0 | Automotive, General Purpose, Medical, Telecommunications | Square | 2.54 çm | 100 çin | Thermoplastic | 9 | Latch Holder | 0.23 in | 5.84 mm | Header | Black | Brass | 0.1 in | 2.54 mm | Male Pin | 3 A | All | Board Guide, Keying Slot | Tin-Lead |
TE Connectivity AMP Connectors 5-104450-5 | Through Hole | Press-Fit, Solder | 13.6 mm | 0.535 in | 1 | 0.545 in | 13.84 mm | Tin | -65 ░C | 105 ░C | Board to Board, Cable | Shrouded - 4 Wall | 2.54 µm | 100 µin | 0.13 in | 3.3 mm | UL94 V-0 | Automotive, General Purpose, Medical, Telecommunications | Square | 2.54 çm | 100 çin | Thermoplastic | 6 | Latch Holder | 0.23 in | 5.84 mm | Header | Black | Brass | 0.1 in | 2.54 mm | Male Pin | 3 A | All | Board Guide, Keying Slot | |
TE Connectivity AMP Connectors 1-104450-2 | Through Hole | Press-Fit, Solder | 13.6 mm | 0.535 in | 1 | 0.545 in | 13.84 mm | Tin | -65 ░C | 105 ░C | Board to Board, Cable | Shrouded - 4 Wall | 2.54 µm | 100 µin | 0.13 in | 3.3 mm | UL94 V-0 | Automotive, General Purpose, Medical, Telecommunications | Square | 2.54 çm | 100 çin | Thermoplastic | Latch Holder | 0.23 in | 5.84 mm | Header | Black | Brass | 0.1 in | 2.54 mm | Male Pin | 3 A | All | Board Guide, Keying Slot | ||
TE Connectivity AMP Connectors 5-104450-3 | Through Hole | Press-Fit, Solder | 13.6 mm | 0.535 in | 1 | 0.545 in | 13.84 mm | Tin | -65 ░C | 105 ░C | Board to Board, Cable | Shrouded - 4 Wall | 2.54 µm | 100 µin | 0.13 in | 3.3 mm | UL94 V-0 | Automotive, General Purpose, Medical, Telecommunications | Square | 2.54 çm | 100 çin | Thermoplastic | 4 | Latch Holder | 0.23 in | 5.84 mm | Header | Black | Brass | 0.1 in | 2.54 mm | Male Pin | 3 A | All | Board Guide, Keying Slot | |
TE Connectivity AMP Connectors 104450-7 | Through Hole | Press-Fit, Solder | 13.6 mm | 0.535 in | 1 | 0.545 in | 13.84 mm | Tin-Lead | -65 ░C | 105 ░C | Board to Board, Cable | Shrouded - 4 Wall | 2.54 µm | 100 µin | 0.13 in | 3.3 mm | UL94 V-0 | Automotive, General Purpose, Medical, Telecommunications | Square | 2.54 çm | 100 çin | Thermoplastic | 8 | Latch Holder | 0.23 in | 5.84 mm | Header | Black | Brass | 0.1 in | 2.54 mm | Male Pin | 3 A | All | Board Guide, Keying Slot | Tin-Lead |
TE Connectivity AMP Connectors 5-104450-2 | Through Hole | Press-Fit, Solder | 13.6 mm | 0.535 in | 1 | 0.545 in | 13.84 mm | Tin | -65 ░C | 105 ░C | Board to Board, Cable | Shrouded - 4 Wall | 2.54 µm | 100 µin | 0.13 in | 3.3 mm | UL94 V-0 | Automotive, General Purpose, Medical, Telecommunications | Square | 2.54 çm | 100 çin | Thermoplastic | Latch Holder | 0.23 in | 5.84 mm | Header | Black | Brass | 0.1 in | 2.54 mm | Male Pin | 3 A | All | Board Guide, Keying Slot |
Description
General part information
104450 Series
Connector Header Through Hole 5 position 0.100" (2.54mm)
