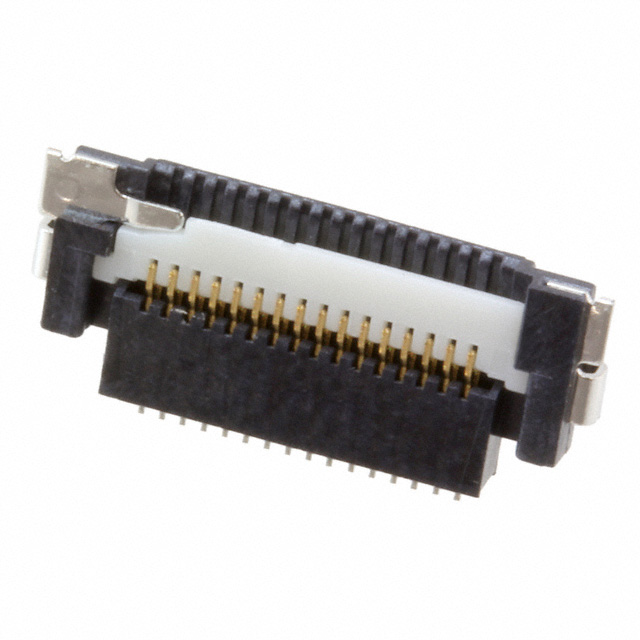

Specification	FA5S016HP1

Actuator Color	White
Actuator Material	Nylon, Glass Filled, Polyamide (PA)
Cable End Type	Tapered
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Per Contact)	0.8 A
Features	Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC
Height Above Board	0.057 in
Housing Color	Black
Housing Material	Glass Filled, LCP, Liquid Crystal Polymer
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20 cycles
Mounting Type	Right Angle, Surface Mount
Number of Positions	16
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Pitch	0.02 in
Termination	Solder
Voltage Rating	50 V

FA5S016H Series

Part	Voltage Rating	Contact Finish	Flat Flex Type	Mounting Type	Features	Pitch	Cable End Type	Locking Feature	Number of Positions	Actuator Material	Height Above Board	Connector/Contact Type	Housing Material	Contact Material	FFC, FCB Thickness	Termination	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Housing Color	Current Rating (Per Contact)	Actuator Color	Mating Cycles
JAE Electronics FA5S016HP1	50 V	Gold	FPC	Right Angle Surface Mount	Solder Retention Zero Insertion Force (ZIF)	0.02 in	Tapered	Flip Lock	16	Glass Filled Nylon Polyamide (PA)	0.057 in	Bottom Contacts	Glass Filled LCP Liquid Crystal Polymer	Copper Alloy	0.3 mm	Solder	UL94 V-0	-40 °C	85 °C	Black	0.8 A	White	20 cycles
