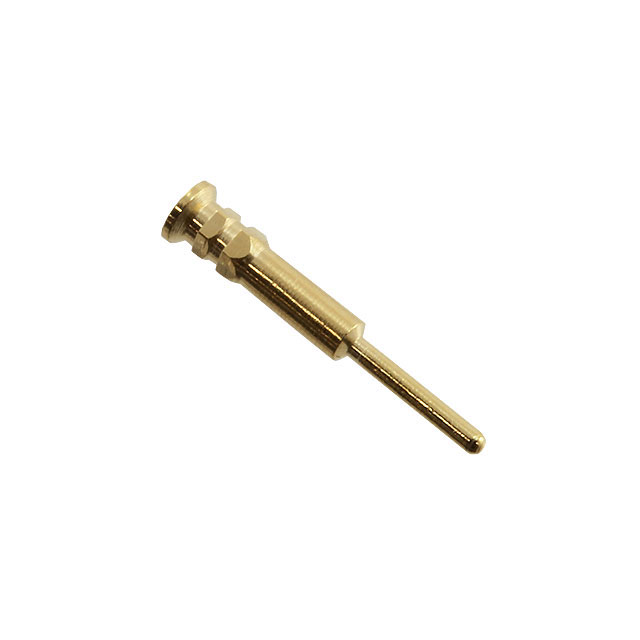

0542-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.020DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0542-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.4 mm |
| Flange Diameter [diameter] | 0.055 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.279 in |
| Length - Above Flange [x] | 7.09 mm |
| Length - Overall | 7.49 mm |
| Length - Overall [x] | 0.295 in |
| Mounting Hole Diameter [diameter] | 0.99 mm |
| Mounting Hole Diameter [diameter] | 0.039 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.51 mm |
| Pin Size - Above Flange [diameter] | 0.02 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Press-Fit, Hex |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.25 | |
| 10 | $ 0.21 | |||
| 25 | $ 0.19 | |||
| 50 | $ 0.17 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.11 | |||
| 2500 | $ 0.10 | |||
Description
General part information
0542-0 Series
PC Pin Terminal Connector Through Hole Gold 0.020" (0.51mm) Dia
