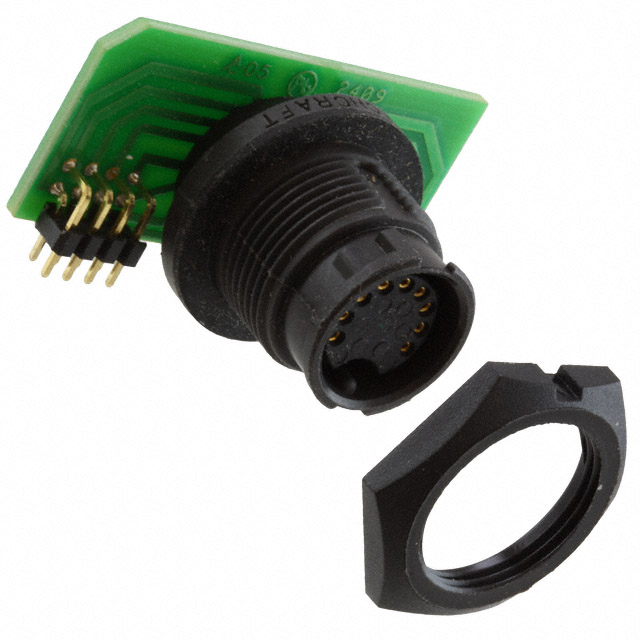

EN3P9FRAPCBW
ActiveSwitchcraft Inc.
CONN RCPT FMALE 9POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3P9FRAPCBW | EN3P9F Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 2 A | 2 - 3 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Panel Mount, Right Angle |
| Number of Positions | 9 | 9 |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Circuit Board, Solder | Solder, Circuit Board, Solder |
| Voltage Rating | 250 VAC | 250 VAC |
EN3P9F Series
CONN RCPT FMALE 9POS GOLD SOLDER
| Part | Insert Material | Orientation | Contact Finish - Mating | Fastening Type | Number of Positions | Contact Material | Primary Material | Termination | Voltage Rating | Shielding | Current Rating (Amps) | Applications | Ingress Protection | Color | Mounting Feature | Mounting Type | Material Flammability Rating | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3P9F26PX | Elastomer | Keyed | Gold | Bayonet Lock | 9 | Copper Alloy | Plastic | Solder | 250 VAC | Unshielded | 3 A | General Purpose, Instrumentation, Marine, Medical | IP66/IP68 | Black | Bulkhead - Front Side Nut | Panel Mount, Through Hole | UL94 V-0 | Receptacle, Female Sockets | 65 °C | -40 °C |
Switchcraft Inc. EN3P9FRAPCBW | Elastomer | Keyed | Gold | Bayonet Lock | 9 | Copper Alloy | Plastic | Circuit Board, Solder | 250 VAC | Unshielded | 2 A | General Purpose, Instrumentation, Marine, Medical | IP66/IP68 | Black | Bulkhead - Front Side Nut | Panel Mount, Right Angle, Through Hole | UL94 V-0 | Receptacle, Female Sockets | 65 °C | -40 °C |
Switchcraft Inc. EN3P9F26SX | Elastomer | Keyed | Gold | Bayonet Lock | 9 | Copper Alloy | Plastic | 250 VAC | Unshielded | 3 A | General Purpose, Instrumentation, Marine, Medical | IP66/IP68 | Black | Bulkhead - Front Side Nut | UL94 V-0 | Receptacle, Female Sockets | 65 °C | -40 °C | ||
Switchcraft Inc. EN3P9F26X | Elastomer | Keyed | Gold | Bayonet Lock | 9 | Copper Alloy | Plastic | 250 VAC | Unshielded | 3 A | General Purpose, Instrumentation, Marine, Medical | IP66/IP68 | Black | Bulkhead - Front Side Nut | UL94 V-0 | Receptacle, Female Sockets | 65 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.66 | |
| 10 | $ 15.85 | |||
Description
General part information
EN3P9F Series
9 Position Circular Connector Receptacle, Female Sockets Circuit Board, Solder
