EN3P9F26SX

Active

Switchcraft Inc.

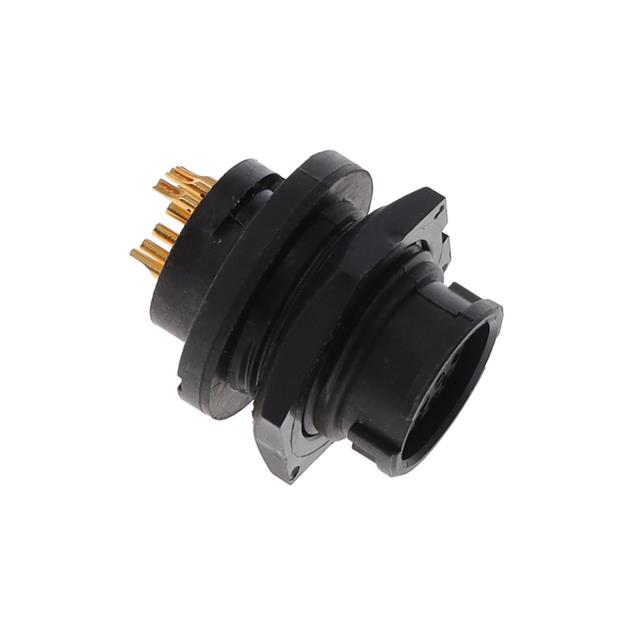

CONN RCPT FMALE 9P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT FMALE 9P GOLD SLDR CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	EN3P9F26SX	EN3P9F Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	3 A	2 - 3 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	-	Through Hole, Panel Mount, Right Angle
Number of Positions	9	9
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	-	Solder, Circuit Board, Solder
Voltage Rating	250 VAC	250 VAC

CONN RCPT FMALE 9POS GOLD SOLDER

Part	Insert Material	Orientation	Contact Finish - Mating	Fastening Type	Number of Positions	Contact Material	Primary Material	Termination	Voltage Rating	Shielding	Current Rating (Amps)	Applications	Ingress Protection	Color	Mounting Feature	Mounting Type	Material Flammability Rating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]
Switchcraft Inc. EN3P9F26PX	Elastomer	Keyed	Gold	Bayonet Lock	9	Copper Alloy	Plastic	Solder	250 VAC	Unshielded	3 A	General Purpose, Instrumentation, Marine, Medical	IP66/IP68	Black	Bulkhead - Front Side Nut	Panel Mount, Through Hole	UL94 V-0	Receptacle, Female Sockets	65 °C	-40 °C
Switchcraft Inc. EN3P9FRAPCBW	Elastomer	Keyed	Gold	Bayonet Lock	9	Copper Alloy	Plastic	Circuit Board, Solder	250 VAC	Unshielded	2 A	General Purpose, Instrumentation, Marine, Medical	IP66/IP68	Black	Bulkhead - Front Side Nut	Panel Mount, Right Angle, Through Hole	UL94 V-0	Receptacle, Female Sockets	65 °C	-40 °C
Switchcraft Inc. EN3P9F26SX	Elastomer	Keyed	Gold	Bayonet Lock	9	Copper Alloy	Plastic		250 VAC	Unshielded	3 A	General Purpose, Instrumentation, Marine, Medical	IP66/IP68	Black	Bulkhead - Front Side Nut		UL94 V-0	Receptacle, Female Sockets	65 °C	-40 °C
Switchcraft Inc. EN3P9F26X	Elastomer	Keyed	Gold	Bayonet Lock	9	Copper Alloy	Plastic		250 VAC	Unshielded	3 A	General Purpose, Instrumentation, Marine, Medical	IP66/IP68	Black	Bulkhead - Front Side Nut		UL94 V-0	Receptacle, Female Sockets	65 °C	-40 °C
