Q-2005A0003009i

Active

Amphenol Custom Cable

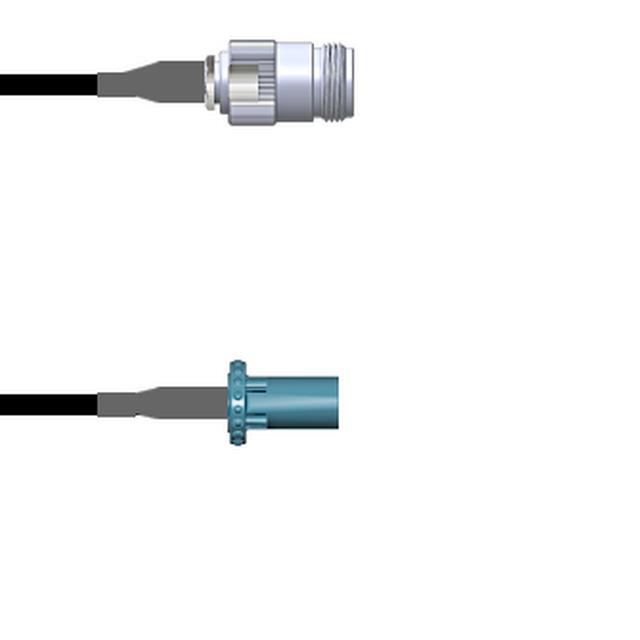

CBL ASSY NTYPE-FAKRA JACK-PLG 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2005A0003009i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-FAKRA JACK-PLG 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2005A0003009i

1st Connector	N-Type Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	Fakra Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	N-Type to Fakra

Q-2005A0 Series

Part	Frequency - Max [Max]	Features	Length	Length	Length	1st Connector	Color	2nd Connector Mounting Type	Overall Impedance	2nd Connector	Cable Type	1st Contact Gender	2nd Contact Gender	1st Connector Mounting Type	Style
Amphenol Custom Cable Q-2005A0005108i	3 GHz	Shielded	2.7 m	9 ft	108 in	N-Type Jack	Copper	Free Hanging (In-Line)	50 Ohms	Fakra Plug	RG-316	Female	Male	Free Hanging (In-Line)	N-Type to Fakra
Amphenol Custom Cable Q-2005A0005003M	3 GHz	Shielded	3 m	9.8 '	118.1 in	N-Type Jack	Copper	Free Hanging (In-Line)	50 Ohms	Fakra Plug	RG-316	Female	Male	Free Hanging (In-Line)	N-Type to Fakra
Amphenol Custom Cable Q-2005A0003003M	3 GHz	Shielded	3 m	9.8 '	118.1 in	N-Type Jack	Black	Free Hanging (In-Line)	50 Ohms	Fakra Plug	RG-174	Female	Male	Free Hanging (In-Line)	N-Type to Fakra
Amphenol Custom Cable Q-2005A0003001M	3 GHz	Shielded	1 m	3.3 ft	39.4 in	N-Type Jack	Black	Free Hanging (In-Line)	50 Ohms	Fakra Plug	RG-174	Female	Male	Free Hanging (In-Line)	N-Type to Fakra
Amphenol Custom Cable Q-2005A0003009i	3 GHz	Shielded	228.6 mm		9 "	N-Type Jack	Black	Free Hanging (In-Line)	50 Ohms	Fakra Plug	RG-174	Female	Male	Free Hanging (In-Line)	N-Type to Fakra
Amphenol Custom Cable Q-2005A0003060i	3 GHz	Shielded	1.5 m	5 ft	5 '	N-Type Jack	Black	Free Hanging (In-Line)	50 Ohms	Fakra Plug	RG-174	Female	Male	Free Hanging (In-Line)	N-Type to Fakra
Amphenol Custom Cable Q-2005A0003048i	3 GHz	Shielded	1200 mm	4 ft	48 in	N-Type Jack	Black	Free Hanging (In-Line)	50 Ohms	Fakra Plug	RG-174	Female	Male	Free Hanging (In-Line)	N-Type to Fakra
Amphenol Custom Cable Q-2005A0003024i	3 GHz	Shielded	609.6 mm		24 "	N-Type Jack	Black	Free Hanging (In-Line)	50 Ohms	Fakra Plug	RG-174	Female	Male	Free Hanging (In-Line)	N-Type to Fakra
Amphenol Custom Cable Q-2005A0005072i	3 GHz	Shielded	1.8 m	6 ft	72 in	N-Type Jack	Copper	Free Hanging (In-Line)	50 Ohms	Fakra Plug	RG-316	Female	Male	Free Hanging (In-Line)	N-Type to Fakra
Amphenol Custom Cable Q-2005A0005009i	3 GHz	Shielded	228.6 mm		9 "	N-Type Jack	Copper	Free Hanging (In-Line)	50 Ohms	Fakra Plug	RG-316	Female	Male	Free Hanging (In-Line)	N-Type to Fakra

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 40.17
		25	$ 39.39
		50	$ 38.61
		100	$ 37.83
		250	$ 37.05

Description

General part information

Q-2005A0 Series

Cable Assembly Coaxial N-Type to Fakra RG-174 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
