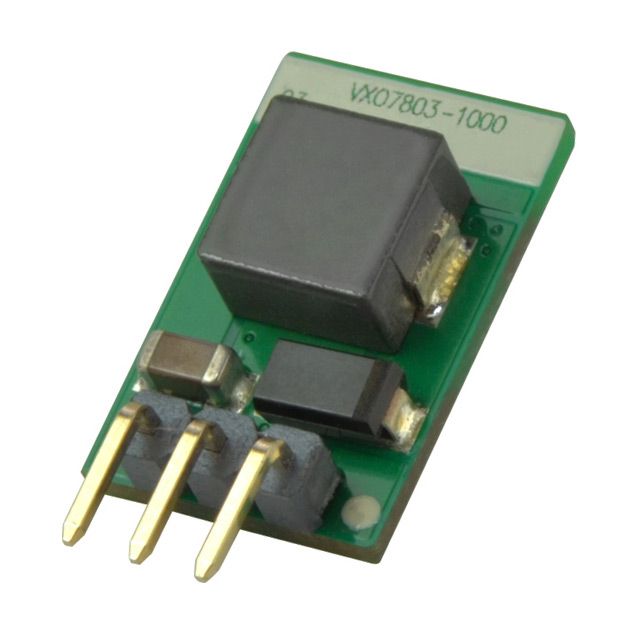

VXO7803-1000

CUI Inc.

DC DC CONVERTER 3.3V 3.3W

Search across all available documentation for this part.

CUI Inc.

DC DC CONVERTER 3.3V 3.3W

Technical Specifications

Parameters and characteristics for this part

Specification	VXO7803-1000

Applications	ITE (Commercial)
Approval Agency	EN, CB Scheme, UL, IEC
Current - Output (Max) [Max]	1 A
Efficiency	90 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3-SIP Module
Power (Watts)	3.3 W
Size / Dimension [x]	0.45 in
Size / Dimension [x]	11.5 mm
Size / Dimension [y]	7.5 mm
Size / Dimension [y]	0.3 "
Size / Dimension [z]	0.69 "
Size / Dimension [z]	17.5 mm
Standard Number	55024, 60950-1, 55032 Class A
Type	Linear Regulator Replacement
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	6 V
Voltage - Output 1	3.3 V

DC DC CONVERTER 3.3V 3.3W

Part	Efficiency	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Applications	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Standard Number	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Voltage - Input (Min) [Min]	Number of Outputs	Approval Agency	Power (Watts)	Mounting Type	Features
CUI Inc. VXO7803-1000	90 %	1 A	36 V	ITE (Commercial)	3-SIP Module	7.5 mm	0.3 "	0.45 in	11.5 mm	0.69 "	17.5 mm	55024, 55032 Class A, 60950-1	Linear Regulator Replacement	85 °C	-40 °C	3.3 V	6 V	1	CB Scheme, EN, IEC, UL	3.3 W	Through Hole	SCP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	374	$ 2.52

General part information

Linear Regulator Replacement DC DC Converter 1 Output 3.3V 1A 6V - 36V Input
