M7SSK-2510R
Active3M
D-SUB CABLE MFM25K/MC26M/MFM25K
Deep-Dive with AI
Search across all available documentation for this part.
M7SSK-2510R
Active3M
D-SUB CABLE MFM25K/MC26M/MFM25K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M7SSK-2510R | M7SSK Series |
|---|---|---|
| 1st Connector | Receptacle, Female Sockets | Receptacle, Female Sockets |
| 2nd Connector | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Color | Ribbon, Multiple | Ribbon, Multiple |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | 10 ft | 6 - 10 ft |
| Length | 3.05 m | 1.83 - 3.05 m |
| Number of Positions | - | 9 - 37 |
| Shielding | Unshielded | Unshielded |
| Type | DB25 | DB25, DB37, DB9, DB15 |
| Usage | Patch | Patch |
M7SSK Series
D-SUB CABLE MFM25K/MC26G/MFM25K
| Part | Usage | Contact Finish Thickness | Contact Finish Thickness | 1st Connector | Shielding | Contact Finish | Length | Length | 2nd Connector | Type | Number of Positions | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Patch | 0.76 Ám | 30 Áin | Female Sockets, Receptacle | Unshielded | Gold | 6 ft | 1.83 m | Receptacle, Female Sockets | DB25 | |||
Patch | 0.76 Ám | 30 Áin | Female Sockets, Receptacle | Unshielded | Gold | 6 ft | 1.83 m | Receptacle, Female Sockets | DB37 | 37 | Multiple, Ribbon | |
Patch | 0.76 Ám | 30 Áin | Female Sockets, Receptacle | Unshielded | Gold | 10 ft | 3.05 m | Receptacle, Female Sockets | DB9 | 9 | ||
Patch | 0.76 Ám | 30 Áin | Female Sockets, Receptacle | Unshielded | Gold | 10 ft | 3.05 m | Receptacle, Female Sockets | DB37 | 37 | Multiple, Ribbon | |
Patch | 0.76 Ám | 30 Áin | Female Sockets, Receptacle | Unshielded | Gold | 6 ft | 1.83 m | Receptacle, Female Sockets | DB25 | Multiple, Ribbon | ||
Patch | 0.76 Ám | 30 Áin | Female Sockets, Receptacle | Unshielded | Gold | 10 ft | 3.05 m | Receptacle, Female Sockets | DB25 | Multiple, Ribbon | ||
Patch | 0.76 Ám | 30 Áin | Female Sockets, Receptacle | Unshielded | Gold | 6 ft | 1.83 m | Receptacle, Female Sockets | DB15 | 15 | ||
Patch | 0.76 Ám | 30 Áin | Female Sockets, Receptacle | Unshielded | Gold | 10 ft | 3.05 m | Receptacle, Female Sockets | DB15 | 15 | Multiple, Ribbon | |
Patch | 0.76 Ám | 30 Áin | Female Sockets, Receptacle | Unshielded | Gold | 10 ft | 3.05 m | Receptacle, Female Sockets | DB9 | 9 | Multiple, Ribbon |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 29.13 | |
| 10 | $ 22.48 | |||
| 25 | $ 20.36 | |||
| 50 | $ 18.94 | |||
| 100 | $ 17.64 | |||
| 250 | $ 16.12 | |||
| 500 | $ 15.09 | |||
Description
General part information
M7SSK Series

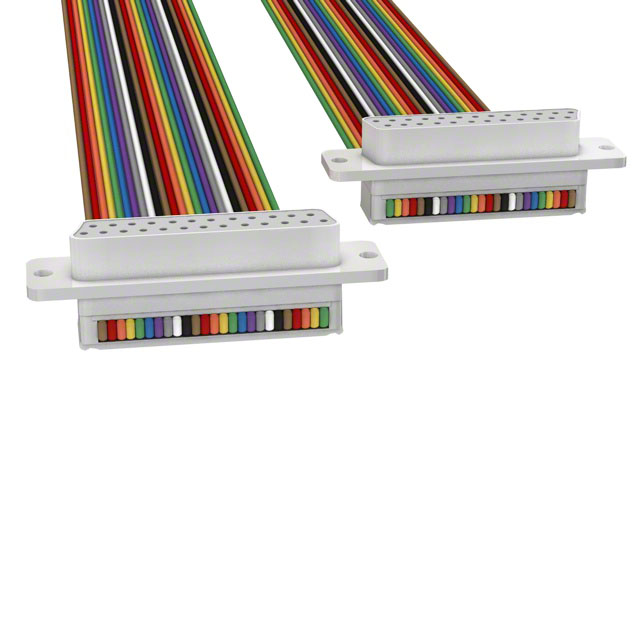

D-Sub Cable Assembly DB25 Multiple, Ribbon 10.00' (3.05m) Receptacle, Female Sockets to Receptacle, Female Sockets Unshielded
