M7SSK-1510R

Active

D-SUB CABLE MFM15K/MC16M/MFM15K

Search across all available documentation for this part.

Active

D-SUB CABLE MFM15K/MC16M/MFM15K

Technical Specifications

Parameters and characteristics commom to parts in this series

D-SUB CABLE MFM25K/MC26G/MFM25K

Part	Usage	Contact Finish Thickness	Contact Finish Thickness	1st Connector	Shielding	Contact Finish	Length	Length	2nd Connector	Type	Number of Positions	Color
3M M7SSK-2506J	Patch	0.76 Ám	30 Áin	Female Sockets, Receptacle	Unshielded	Gold	6 ft	1.83 m	Receptacle, Female Sockets	DB25
3M M7SSK-3706R	Patch	0.76 Ám	30 Áin	Female Sockets, Receptacle	Unshielded	Gold	6 ft	1.83 m	Receptacle, Female Sockets	DB37	37	Multiple, Ribbon
3M M7SSK-0910J	Patch	0.76 Ám	30 Áin	Female Sockets, Receptacle	Unshielded	Gold	10 ft	3.05 m	Receptacle, Female Sockets	DB9	9
3M M7SSK-3710R	Patch	0.76 Ám	30 Áin	Female Sockets, Receptacle	Unshielded	Gold	10 ft	3.05 m	Receptacle, Female Sockets	DB37	37	Multiple, Ribbon
3M M7SSK-2506R	Patch	0.76 Ám	30 Áin	Female Sockets, Receptacle	Unshielded	Gold	6 ft	1.83 m	Receptacle, Female Sockets	DB25		Multiple, Ribbon
3M M7SSK-2510R	Patch	0.76 Ám	30 Áin	Female Sockets, Receptacle	Unshielded	Gold	10 ft	3.05 m	Receptacle, Female Sockets	DB25		Multiple, Ribbon
3M M7SSK-1506J	Patch	0.76 Ám	30 Áin	Female Sockets, Receptacle	Unshielded	Gold	6 ft	1.83 m	Receptacle, Female Sockets	DB15	15
3M M7SSK-1510R	Patch	0.76 Ám	30 Áin	Female Sockets, Receptacle	Unshielded	Gold	10 ft	3.05 m	Receptacle, Female Sockets	DB15	15	Multiple, Ribbon
3M M7SSK-0910R	Patch	0.76 Ám	30 Áin	Female Sockets, Receptacle	Unshielded	Gold	10 ft	3.05 m	Receptacle, Female Sockets	DB9	9	Multiple, Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

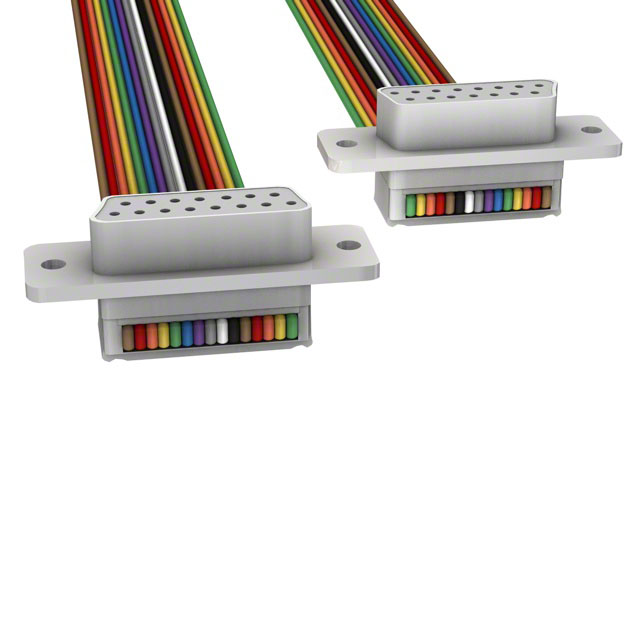

D-Sub Cable Assembly DB15 Multiple, Ribbon 10.00' (3.05m) Receptacle, Female Sockets to Receptacle, Female Sockets Unshielded
