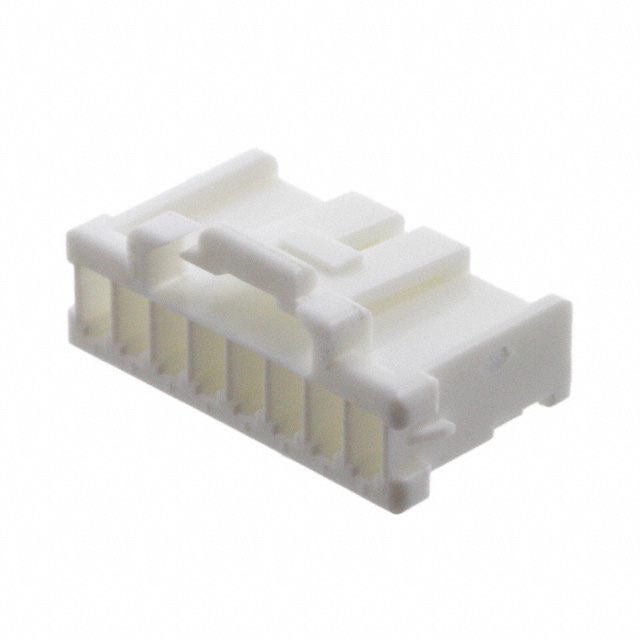

PNIRP-08V-S

Active

JST Sales America Inc.

CONN SOCKET HSG 8POS 2.00MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN SOCKET HSG 8POS 2.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	PNIRP-08V-S

Color	Natural
Connector Type	Socket
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Number of Rows	Connector Type	Contact Type	Mounting Type	Pitch [x]	Pitch [x]	Insulation Material	Note	Number of Positions	Fastening Type	Color
JST Sales America Inc. PNIRP-08V-S	-25 °C	85 °C	Crimp	1	Socket	Female Socket	Free Hanging (In-Line)	0.079 in	2 mm	Polybutylene Terephthalate (PBT) Glass Filled	Contacts Not Included	8	Latch Holder	Natural

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Rectangular Connectors - Housings Socket Natural 0.079" (2.00mm)
