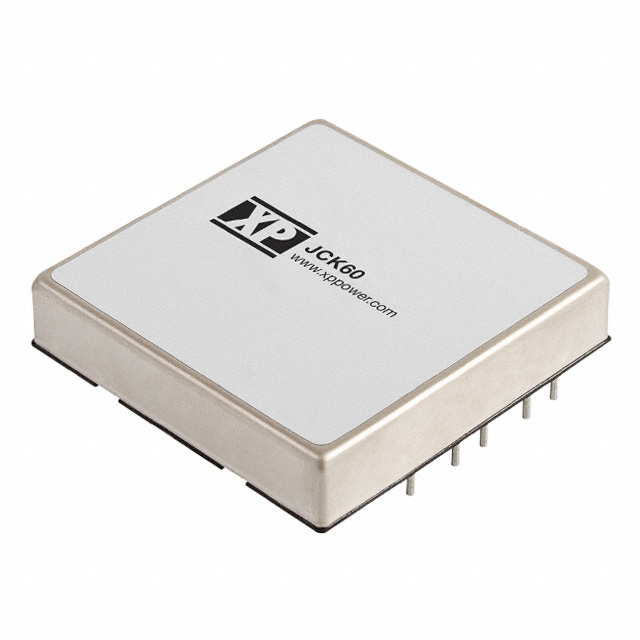

JCK6024S3V3

Active

XP POWER

DC DC CONVERTER 3.3V 60W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER 3.3V 60W

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Number of Outputs	Power (Watts)	Features	Mounting Type	Control Features	Package / Case	Efficiency	Voltage - Isolation	Applications	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Voltage - Input (Min) [Min]
XP POWER JCK6024S3V3	14 A	36 V	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	1	60 W	OCP OVP Remote On/Off SCP UVLO	Through Hole	Active High Enable	8-DIP Module	91 %	1.6 kV	ITE (Commercial)	Isolated Module	100 °C	-40 °C	3.3 V	18 V
XP POWER JCK6024S05	12 A	36 V	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	1	60 W	OCP OVP Remote On/Off SCP UVLO	Through Hole	Active High Enable	8-DIP Module	92 %	1.6 kV	ITE (Commercial)	Isolated Module	100 °C	-40 °C	5 V	18 V
XP POWER JCK6024S12	5 A	36 V	10.2 mm	50.8 mm	2 in	0.4 "	50.8 mm	2 in	1	60 W	OCP OVP Remote On/Off SCP UVLO	Through Hole	Active High Enable	8-DIP Module	91 %	1.6 kV	ITE (Commercial)	Isolated Module	100 °C	-40 °C	12 V	18 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	5	$ 105.63

General part information

Isolated Module DC DC Converter 1 Output 3.3V 14A 18V - 36V Input
