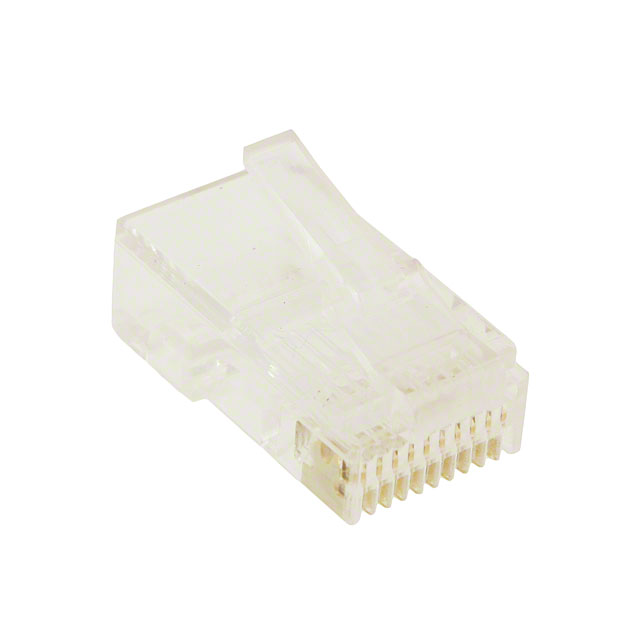

A-MO 10/10-F50
ActiveAssmann WSW Components
CONN MOD PLUG 10P10C UNSHIELDED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A-MO 10/10-F50
ActiveAssmann WSW Components
CONN MOD PLUG 10P10C UNSHIELDED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A-MO 10/10-F50 |
|---|---|
| Cable Type | Flat Oval Cable, Stranded Wires |
| Color | Translucent - Clear |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 2 A |
| Housing Material | Polycarbonate (PC) |
| Length [x] | 0.976 in |
| Length [x] | 24.79 mm |
| Number of Positions/Contacts [custom] | 10 |
| Number of Positions/Contacts [custom] | 10 |
| Shielding | Unshielded |
| Termination | IDC |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.54 | |
| 10 | $ 0.47 | |||
| 25 | $ 0.43 | |||
| 50 | $ 0.40 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.35 | |||
| 500 | $ 0.34 | |||
| 1000 | $ 0.28 | |||
| 2500 | $ 0.25 | |||
Description
General part information
A-MO 10/10 Series
Plug Modular Connector 10p10c (RJ50) Position Unshielded IDC
