TSM-132-01-S-SV-A

Active

Samtec Inc.

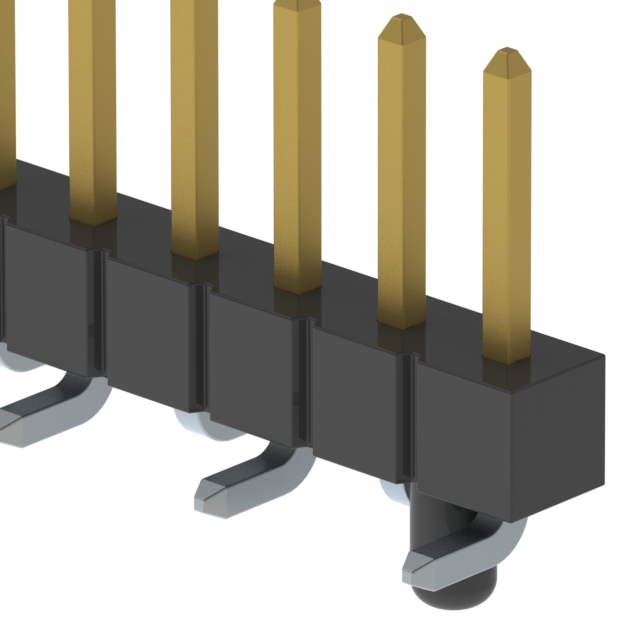

CONN HEADER SMD 32POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TSM-132-01-S-SV-A

Active

Samtec Inc.

CONN HEADER SMD 32POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSM-132-01-S-SV-A

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSM-132 Series

Part	Number of Rows	Mounting Type	Insulation Material	Connector Type	Shrouding	Material Flammability Rating	Contact Type	Contact Finish - Post	Features	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Insulation Color	Contact Shape	Contact Material	Fastening Type	Style	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]
Samtec Inc. TSM-132-04-T-SV-P	1	Surface Mount	Liquid Crystal Polymer (LCP)	Cuttable Header	Unshrouded	UL94 V-0	Male Pin	Tin	Pick and Place	0.1 in	2.54 mm	105 ░C	-55 °C	Solder	Black	Square	Phosphor Bronze	Push-Pull	Board to Board Cable	3.05 mm	0.12 in	All	0.1 in	2.54 mm
Samtec Inc. TSM-132-02-L-SH-P	1	Surface Mount Right Angle	Liquid Crystal Polymer (LCP)	Header	Unshrouded	UL94 V-0	Male Pin	Tin	Pick and Place	0.12 in	3.05 mm	125 °C	-55 °C	Solder	Black	Square	Phosphor Bronze	Push-Pull	Board to Board Cable	8.13 mm	0.32 in	All	0.1 in	2.54 mm	10 çin	0.25 çm	Gold
Samtec Inc. TSM-132-01-STL-DV	2	Surface Mount	Liquid Crystal Polymer (LCP)	Cuttable Header	Unshrouded	UL94 V-0	Male Pin	Tin		0.1 in	2.54 mm	125 °C	-55 °C	Solder	Black	Square	Phosphor Bronze	Push-Pull	Board to Board Cable	5.84 mm		All	0.1 in	2.54 mm	30 Áin	0.76 Ám	Gold	64	2.54 mm	0.1 in	0.23 in
Samtec Inc. TSM-132-03-T-DV-LC	2	Surface Mount	Liquid Crystal Polymer (LCP)	Cuttable Header	Unshrouded	UL94 V-0	Male Pin	Tin		0.1 in	2.54 mm	105 ░C	-55 °C	Solder	Black	Square	Phosphor Bronze	Push-Pull	Board to Board Cable	10.67 mm	0.42 in	All	0.1 in	2.54 mm				64	2.54 mm	0.1 in
Samtec Inc. TSM-132-03-L-DV	2	Surface Mount	Liquid Crystal Polymer (LCP)	Cuttable Header	Unshrouded	UL94 V-0	Male Pin	Tin		0.1 in	2.54 mm	125 °C	-55 °C	Solder	Black	Square	Phosphor Bronze	Push-Pull	Board to Board Cable	10.67 mm	0.42 in	All	0.1 in	2.54 mm	10 çin	0.25 çm	Gold	64	2.54 mm	0.1 in
Samtec Inc. TSM-132-01-L-SH-P	1	Surface Mount Right Angle	Liquid Crystal Polymer (LCP)	Header	Unshrouded	UL94 V-0	Male Pin	Tin	Pick and Place	0.12 in	3.05 mm	125 °C	-55 °C	Solder	Black	Square	Phosphor Bronze	Push-Pull	Board to Board Cable	5.84 mm		All	0.1 in	2.54 mm	10 çin	0.25 çm	Gold				0.23 in
Samtec Inc. TSM-132-01-LM-DV	2	Surface Mount	Liquid Crystal Polymer (LCP)	Cuttable Header	Unshrouded	UL94 V-0	Male Pin	Tin		0.1 in	2.54 mm	125 °C	-55 °C	Solder	Black	Square	Phosphor Bronze	Push-Pull	Board to Board Cable	5.84 mm		All	0.1 in	2.54 mm	10 çin	0.25 çm	Gold	64	2.54 mm	0.1 in	0.23 in
Samtec Inc. TSM-132-01-S-SV-A	1	Surface Mount	Liquid Crystal Polymer (LCP)	Cuttable Header	Unshrouded	UL94 V-0	Male Pin	Tin	Board Guide	0.1 in	2.54 mm	125 °C	-55 °C	Solder	Black	Square	Phosphor Bronze	Push-Pull	Board to Board Cable	5.84 mm		All	0.1 in	2.54 mm	30 Áin	0.76 Ám	Gold				0.23 in
Samtec Inc. TSM-132-01-T-SH-P	1	Surface Mount Right Angle	Liquid Crystal Polymer (LCP)	Header	Unshrouded	UL94 V-0	Male Pin	Tin	Pick and Place	0.12 in	3.05 mm	105 ░C	-55 °C	Solder	Black	Square	Phosphor Bronze	Push-Pull	Board to Board Cable	5.84 mm		All	0.1 in	2.54 mm							0.23 in
Samtec Inc. TSM-132-04-T-SV	1	Surface Mount	Liquid Crystal Polymer (LCP)	Cuttable Header	Unshrouded	UL94 V-0	Male Pin	Tin		0.1 in	2.54 mm	105 ░C	-55 °C	Solder	Black	Square	Phosphor Bronze	Push-Pull	Board to Board Cable	3.05 mm	0.12 in	All	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	7	$ 6.68

Description

General part information

TSM-132 Series

Connector Header Surface Mount 32 position 0.100" (2.54mm)
