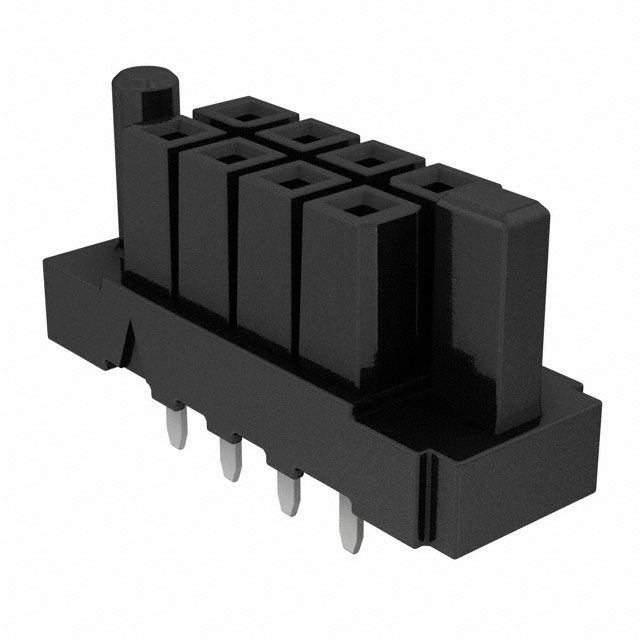

IPBS-104-01-T-S-GP

Active

Samtec Inc.

CONN HDR 4POS 0.165 TIN PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 4POS 0.165 TIN PCB

Technical Specifications

Parameters and characteristics for this part

Part	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Termination	Connector Type	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Contact Type	Insulation Material	Number of Rows	Insulation Height	Insulation Height	Contact Material	Voltage Rating	Mounting Type	Number of Positions	Features	Contact Finish - Post	Contact Shape	Insulation Color	Row Spacing - Mating	Row Spacing - Mating
Samtec Inc. IPBS-104-01-T-S-GP	3.94 mm	0.155 "	All	Solder	Header	Push-Pull	105 ░C	-55 °C	4.2 mm	0.165 in	Female Socket	Liquid Crystal Polymer (LCP)	1	12.2 mm	0.48 in	Phosphor Bronze	400 VAC 565 VDC	Through Hole	4	Guide Pin	Tin	Square	Black
Samtec Inc. IPBS-104-02-T-D-GP			All	Solder	Header	Push-Pull	105 ░C	-55 °C	4.2 mm	0.165 in	Female Socket	Liquid Crystal Polymer (LCP)	2	12.2 mm	0.48 in	Phosphor Bronze	400 VAC 565 VDC	Surface Mount	8	Guide Pin	Tin	Square	Black	4.2 mm	0.165 in
