135103-07-12.00

Active

Amphenol RF

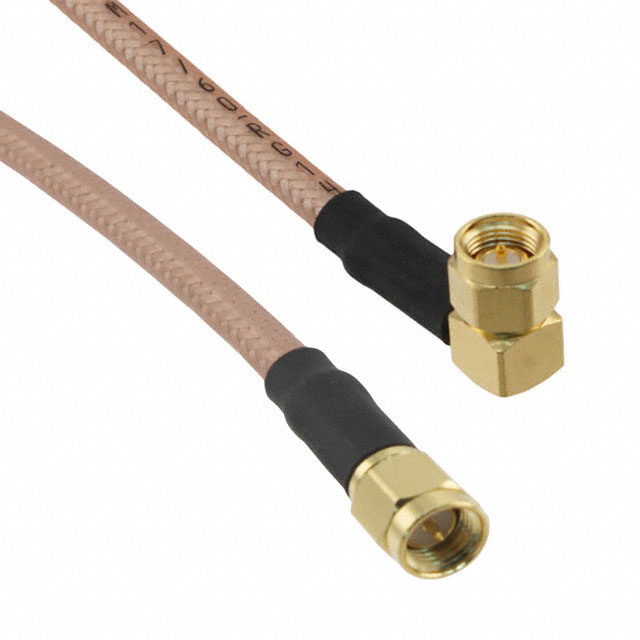

CBL ASSY SMA PLUG TO PLUG 12"

Deep-Dive with AI

Search across all available documentation for this part.

135103-07-12.00

Active

Amphenol RF

CBL ASSY SMA PLUG TO PLUG 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	135103-07-12.00

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	12.4 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	SMA to SMA

135103 Series

Part	2nd Connector Mounting Type	Features	Length	Length	1st Contact Gender	Frequency - Max [Max]	Color	1st Connector	2nd Connector	2nd Contact Gender	Cable Type	Style	Overall Impedance	1st Connector Mounting Type	Cable Impedance	Length
Amphenol RF 135103-07-12.00	Free Hanging (In-Line)	Shielded	12 "	304.8 mm	Male	12.4 GHz	Copper	SMA Plug	SMA Plug Right Angle	Male	RG-142	SMA to SMA	50 Ohms	Free Hanging (In-Line)	50 Ohms
Amphenol RF 135103-01-M1.00	Free Hanging (In-Line)	Shielded	39.4 in	1 m	Male	3 GHz	Copper	SMA Plug	SMA Plug Right Angle	Male	RG-316	SMA to SMA	50 Ohms	Free Hanging (In-Line)	50 Ohms	3.3 ft
Amphenol RF 135103-02-M0.75	Free Hanging (In-Line)	Shielded	29.53 "	750 mm	Male	3 GHz	Brown	SMA Plug	SMA Plug Right Angle	Male	RG-174	SMA to SMA	50 Ohms	Free Hanging (In-Line)	50 Ohms
Amphenol RF 135103-07-06.00	Free Hanging (In-Line)	Shielded	6 in	152.4 mm	Male	12.4 GHz	Copper	SMA Plug	SMA Plug Right Angle	Male	RG-142	SMA to SMA	50 Ohms	Free Hanging (In-Line)	50 Ohms
Amphenol RF 135103-01-24.00	Free Hanging (In-Line)	Shielded	24 "	609.6 mm	Male	3 GHz	Copper	SMA Plug	SMA Plug Right Angle	Male	RG-316	SMA to SMA	50 Ohms	Free Hanging (In-Line)	50 Ohms
Amphenol RF 135103-01-36.00	Free Hanging (In-Line)	Shielded	36 in	91.44 cm	Male	3 GHz	Copper	SMA Plug	SMA Plug Right Angle	Male	RG-316	SMA to SMA	50 Ohms	Free Hanging (In-Line)	50 Ohms
Amphenol RF 135103-04-24.00	Free Hanging (In-Line)	Shielded	24 "	609.6 mm	Male	1 GHz	Black	SMA Plug	SMA Plug Right Angle	Male	RG-58	SMA to SMA	50 Ohms	Free Hanging (In-Line)	50 Ohms
Amphenol RF 135103-02-48.00	Free Hanging (In-Line)	Shielded	48 in	1200 mm	Male	3 GHz	Brown	SMA Plug	SMA Plug Right Angle	Male	RG-174	SMA to SMA	50 Ohms	Free Hanging (In-Line)	50 Ohms	4 ft
Amphenol RF 135103-04-36.00	Free Hanging (In-Line)	Shielded	36 in	91.44 cm	Male	1 GHz	Black	SMA Plug	SMA Plug Right Angle	Male	RG-58	SMA to SMA	50 Ohms	Free Hanging (In-Line)	50 Ohms
Amphenol RF 135103-03-M0.75	Free Hanging (In-Line)	Shielded	29.53 "	750 mm	Male	12.4 GHz	Copper	SMA Plug	SMA Plug Right Angle	Male	RG-316 DS	SMA to SMA	50 Ohms	Free Hanging (In-Line)	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 48.76
		10	$ 37.73
		25	$ 34.24
		50	$ 31.88
		100	$ 29.74
		250	$ 27.22

Description

General part information

135103 Series

Cable Assembly Coaxial SMA to SMA RG-142 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
