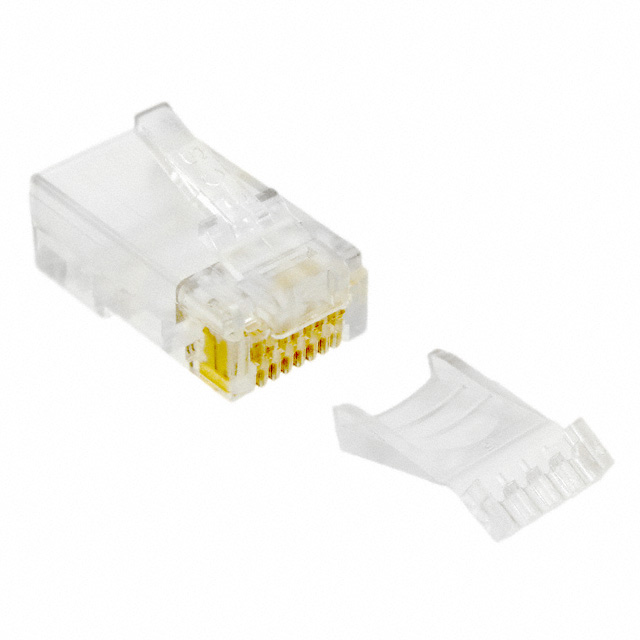

943-SP-370808M2-A285

Active

BEL MAGNETIC SOLUTIONS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

943-SP-370808M2-A285

Active

BEL MAGNETIC SOLUTIONS

943-SP-370808M2-A285

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	943-SP-370808M2-A285

Cable Type	Round Cable, Solid, Stranded Wires
Color	Translucent - Clear
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Current Rating (Amps)	1.5 A
Housing Material	Polycarbonate (PC)
Length	22.48 mm
Length	0.885 in
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Ratings	Cat5
Shielding	Unshielded
Termination	IDC
Voltage Rating	150 VDC

943-SP-37 Series

Part	Housing Material	Color	Length [x]	Length [x]	Features	Shield Material	Cable Type	Voltage Rating	Contact Finish	Number of Positions/Contacts	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Connector Type	Contact Material	Shielding	Termination	Ratings	Length	Length	Length
BEL MAGNETIC SOLUTIONS 943-SP-370808SM2-A278	Polycarbonate (PC)	Translucent - Clear	26.16 mm	1.03 in	Molded Boot	Brass	Round Cable Solid Stranded Wires	150 VDC	Gold	8p8c (RJ45 Ethernet)	50 µin	1.27 µm	1.5 A	Plug	Phosphor Bronze	Shielded	IDC	Cat5
BEL MAGNETIC SOLUTIONS 943-SP-370808SM2-A218	Polycarbonate (PC)	Translucent - Clear			Molded Boot	Brass	Round Cable Solid Stranded Wires	150 VDC	Gold	8p8c (RJ45 Ethernet)	50 µin	1.27 µm	1.5 A	Plug	Phosphor Bronze	Shielded	IDC	Cat5	1.286 in	32.66 mm
BEL MAGNETIC SOLUTIONS 943-SP-370808M2-A380	Polycarbonate (PC)					Brass	Flat Oval Cable Solid or Stranded Wires	150 VDC	Gold	8p8c (RJ45 Ethernet)			1.5 A	Plug	Copper Alloy	Unshielded	IDC
BEL MAGNETIC SOLUTIONS 943-SP-370808SM2-FS-B1000	Polycarbonate (PC)	Translucent - Clear				Brass	Round Cable Solid Stranded Wires	150 VDC	Gold	8p8c (RJ45 Ethernet)	50 µin	1.27 µm	1.5 A	Plug	Phosphor Bronze	Shielded	IDC	Cat5	0.95 "	24.13 mm
BEL MAGNETIC SOLUTIONS 943-SP-370808SM2-A467	Polycarbonate (PC)	Translucent - Clear			Molded Boot	Brass	Round Cable Solid Stranded Wires	150 VDC	Gold	8p8c (RJ45 Ethernet)	50 µin	1.27 µm	1.5 A	Plug	Phosphor Bronze	Shielded	IDC	Cat5	1.286 in	32.66 mm
BEL MAGNETIC SOLUTIONS 943-SP-370808SM2-A217	Polycarbonate (PC)	Translucent - Clear				Brass	Round Cable Solid Stranded Wires	150 VDC	Gold	8p8c (RJ45 Ethernet)	50 µin	1.27 µm	1.5 A	Plug	Phosphor Bronze	Shielded	IDC	Cat5	0.95 "	24.13 mm
BEL MAGNETIC SOLUTIONS 943-SP-370808SM2-A399	Polycarbonate (PC)	Translucent - Clear			Molded Boot	Brass	Round Cable Solid Stranded Wires	150 VDC	Gold	8p8c (RJ45 Ethernet)	50 µin	1.27 µm	1.5 A	Plug	Phosphor Bronze	Shielded	IDC	Cat5	1.286 in	32.66 mm
BEL MAGNETIC SOLUTIONS 943-SP-370808M2-A264	Polycarbonate (PC)	Translucent - Clear					Round Cable Solid Stranded Wires	150 VDC	Gold	8p8c (RJ45 Ethernet)	50 µin	1.27 µm	1.5 A	Plug	Phosphor Bronze	Unshielded	IDC	Cat5		0.885 in	22.48 mm
BEL MAGNETIC SOLUTIONS 943-SP-370808M2-A285	Polycarbonate (PC)	Translucent - Clear					Round Cable Solid Stranded Wires	150 VDC	Gold	8p8c (RJ45 Ethernet)	50 µin	1.27 µm	1.5 A	Plug	Phosphor Bronze	Unshielded	IDC	Cat5		0.885 in	22.48 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.41
		10	$ 1.08
		25	$ 0.97
		50	$ 0.89
		100	$ 0.83
		250	$ 0.75
		500	$ 0.69
		1000	$ 0.65
		2000	$ 0.62
		2500	$ 0.59
		4000	$ 0.59
Newark	Each	1000	$ 0.75

Description

General part information

943-SP-37 Series

943-SP-370808M2-A285

Documents

Technical documentation and resources
