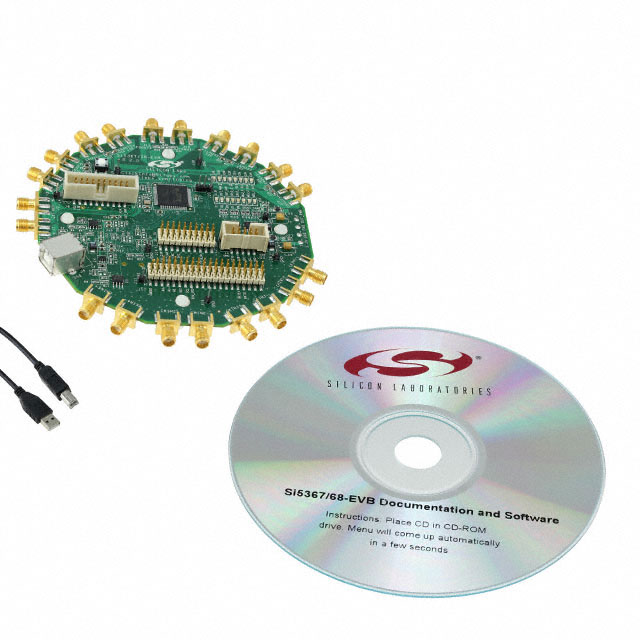

SI5367/68-EVB

Active

Skyworks Solutions Inc.

BOARD EVAL FOR SI5367/68

Search across all available documentation for this part.

Active

Skyworks Solutions Inc.

BOARD EVAL FOR SI5367/68

Technical Specifications

Parameters and characteristics for this part

Part	Contents	Supplied Contents	Function	Type	Utilized IC / Part	Mounting Type	Output	Supplier Device Package	Ratio - Input:Output	Number of Circuits	Frequency - Max [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Input	Voltage - Supply [Min]	Voltage - Supply [Max]	Divider/Multiplier	Divider/Multiplier
Skyworks Solutions Inc. SI5367/68-EVB	Board(s) Cable(s)	Board(s) Cable(s)	Clock Generator	Timing	SI5367 SI5368
Skyworks Solutions Inc. SI5367C-C-GQ				Clock Multiplier		Surface Mount	CML LVCMOS LVDS LVPECL	100-TQFP (14x14)	4:5	1	346 MHz	100-TQFP	85 °C	-40 °C	Clock	1.71 V	2.75 V	No	Yes
Skyworks Solutions Inc. SI5367B-C-GQR				Clock Multiplier		Surface Mount	CML LVCMOS LVDS LVPECL	100-TQFP (14x14)	4:5	1	808 MHz	100-TQFP	85 °C	-40 °C	Clock	1.71 V	2.75 V	No	Yes
Skyworks Solutions Inc. SI5367A-C-GQR				Clock Multiplier		Surface Mount	CML LVCMOS LVDS LVPECL	100-TQFP (14x14)	4:5	1	1.42 GHz	100-TQFP	85 °C	-40 °C	Clock	1.71 V	2.75 V	No	Yes
Skyworks Solutions Inc. SI5367A-C-GQ				Clock Multiplier		Surface Mount	CML LVCMOS LVDS LVPECL	100-TQFP (14x14)	4:5	1	1.42 GHz	100-TQFP	85 °C	-40 °C	Clock	1.71 V	2.75 V	No	Yes
Skyworks Solutions Inc. SI5367B-C-GQ				Clock Multiplier		Surface Mount	CML LVCMOS LVDS LVPECL	100-TQFP (14x14)	4:5	1	808 MHz	100-TQFP	85 °C	-40 °C	Clock	1.71 V	2.75 V	No	Yes

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 197.02

General part information

SI5367, SI5368 - Clock Generator Timing Evaluation Board
