PFR05S-1242-FNH

Active

Delta Electronics/Cyntec

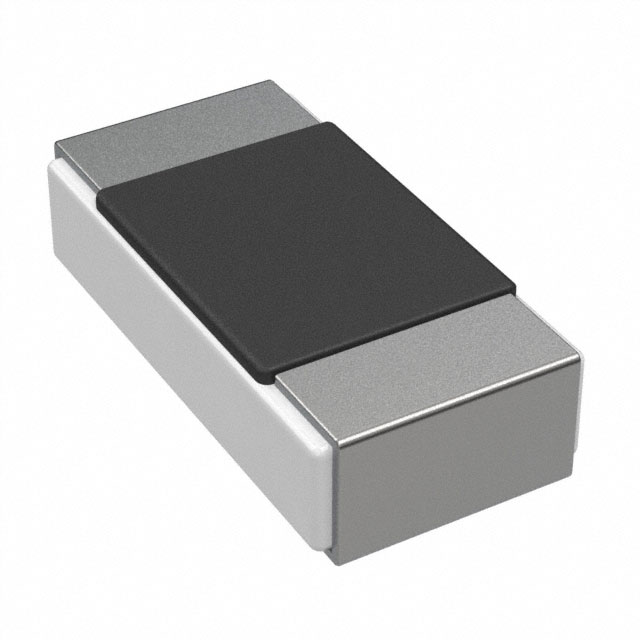

RES SMD 12.4 KOHM 1% 1/16W 0402

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PFR05S-1242-FNH

Active

Delta Electronics/Cyntec

RES SMD 12.4 KOHM 1% 1/16W 0402

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PFR05S-1242-FNH

Composition	Thick Film
Height - Seated (Max) [Max]	0.016 in
Height - Seated (Max) [Max]	0.4 mm
Number of Terminations	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	0402 (1005 Metric)
Power (Watts)	0.0625 W
Power (Watts)	0.063 W
Resistance	12.4 kOhms
Size / Dimension [x]	1 mm
Size / Dimension [x]	0.039 in
Size / Dimension [y]	0.02 in
Size / Dimension [y]	0.5 mm
Supplier Device Package	0402
Temperature Coefficient	200 ppm/°C
Tolerance	1 %

PFR05S Series

Part	Composition	Power (Watts)	Power (Watts)	Temperature Coefficient	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Number of Terminations	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Supplier Device Package	Resistance	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]
Delta Electronics/Cyntec PFR05S-330-JNH	Thick Film	0.0625 W	0.063 W	200 ppm/°C	0.016 in	0.4 mm	2	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0402	33 Ohms	5 %	-55 °C	125 °C
Delta Electronics/Cyntec PFR05S-681-FNH	Thick Film	0.0625 W	0.063 W	200 ppm/°C	0.016 in	0.4 mm	2	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0402	680 Ohms	1 %	-55 °C	125 °C
Delta Electronics/Cyntec PFR05S-154-FNH	Thick Film	0.0625 W	0.063 W	200 ppm/°C	0.016 in	0.4 mm	2	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0402	150000 Ohms	1 %	-55 °C	125 °C
Delta Electronics/Cyntec PFR05S-1242-FNH	Thick Film	0.0625 W	0.063 W	200 ppm/°C	0.016 in	0.4 mm	2	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0402	12.4 kOhms	1 %	-55 °C	125 °C
Delta Electronics/Cyntec PFR05S-201-FNH	Thick Film	0.0625 W	0.063 W	200 ppm/°C	0.016 in	0.4 mm	2	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0402	200 Ohms	1 %	-55 °C	125 °C
Delta Electronics/Cyntec PFR05S-4122-FNH	Thick Film	0.0625 W	0.063 W	200 ppm/°C	0.016 in	0.4 mm	2	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0402	41.2 kOhms	1 %	-55 °C	125 °C
Delta Electronics/Cyntec PFR05S-472-JNH	Thick Film	0.0625 W	0.063 W	200 ppm/°C	0.016 in	0.4 mm	2	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0402	4.7 kOhms	5 %	-55 °C	125 °C
Delta Electronics/Cyntec PFR05S-152-JNH	Thick Film	0.0625 W	0.063 W	200 ppm/°C	0.016 in	0.4 mm	2	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0402	1500 Ohms	5 %	-55 °C	125 °C
Delta Electronics/Cyntec PFR05S-4993-FNH	Thick Film	0.0625 W	0.063 W	200 ppm/°C	0.016 in	0.4 mm	2	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0402	499 kOhms	1 %	-55 °C	125 °C
Delta Electronics/Cyntec PFR05S-101-JNH	Thick Film	0.0625 W	0.063 W	200 ppm/°C	0.016 in	0.4 mm	2	1 mm	0.02 in	0.5 mm	0.039 in	0402 (1005 Metric)	0402	100 Ohms	5 %	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.10
		10	$ 0.01
		50	$ 0.01
		100	$ 0.01
		500	$ 0.00
		1000	$ 0.00
		5000	$ 0.00
	Digi-Reel®	1	$ 0.10
		10	$ 0.01
		50	$ 0.01
		100	$ 0.01
		500	$ 0.00
		1000	$ 0.00
		5000	$ 0.00
	Tape & Reel (TR)	10000	$ 0.00
		20000	$ 0.00
		30000	$ 0.00
		50000	$ 0.00
		70000	$ 0.00
		100000	$ 0.00
		250000	$ 0.00
		500000	$ 0.00
		1000000	$ 0.00

Description

General part information

PFR05S Series

12.4 kOhms ±1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Thick Film
