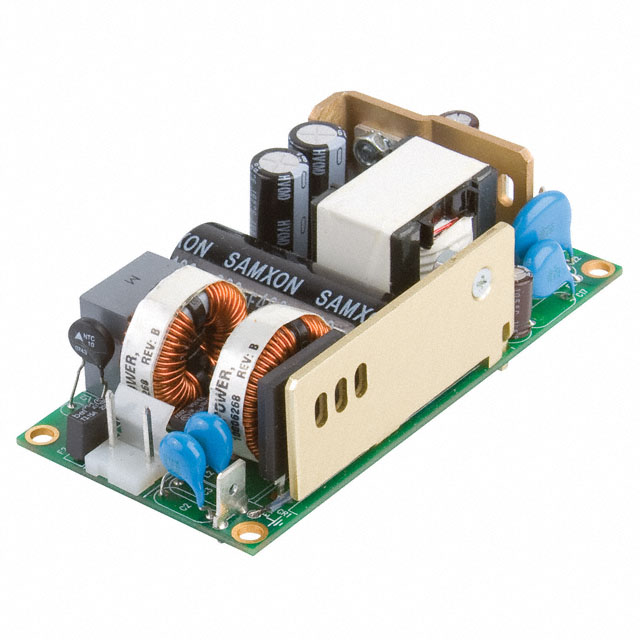

ECS100US12

Active

XP POWER

AC/DC CONVERTER 12V 80W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 12V 80W

Technical Specifications

Parameters and characteristics for this part

Specification	ECS100US12

Applications	ITE (Commercial), Medical
Approval Agency	CB
Current - Output 1	8.3 A
Efficiency	90 %
Features	Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	100 W, 80 W
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	1.25 "
Size / Dimension [z]	31.8 mm
Standard Number	62368-1
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	80 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	12 V

Part	Features	Mounting Type	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Current - Output 1	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 1	Number of Outputs	Efficiency	Type	Approval Agency	Standard Number	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
XP POWER ECS100US12	Adjustable Output DC Input Capable Universal Input	Chassis Mount	80 W 100 W	-20 °C	70 °C	4000 V	8.3 A	ITE (Commercial) Medical	264 VAC	80 VAC	12 V	1	90 %	Open Frame	CB	62368-1	2 in	1.25 "	31.8 mm	50.8 mm	101.6 mm	4 in
XP POWER ECS100US48	Adjustable Output DC Input Capable Universal Input	Chassis Mount	80 W 100 W	-20 °C	70 °C	4000 V	2.1 A	ITE (Commercial) Medical	264 VAC	80 VAC	48 V	1	90 %	Open Frame	CB	62368-1	2 in	1.25 "	31.8 mm	50.8 mm	101.6 mm	4 in
XP POWER ECS100US18	Adjustable Output DC Input Capable Universal Input	Chassis Mount	80 W 100 W	-20 °C	70 °C	4000 V	5.5 A	ITE (Commercial) Medical	264 VAC	80 VAC	18 V	1	90 %	Open Frame	CB	62368-1	2 in	1.25 "	31.8 mm	50.8 mm	101.6 mm	4 in
