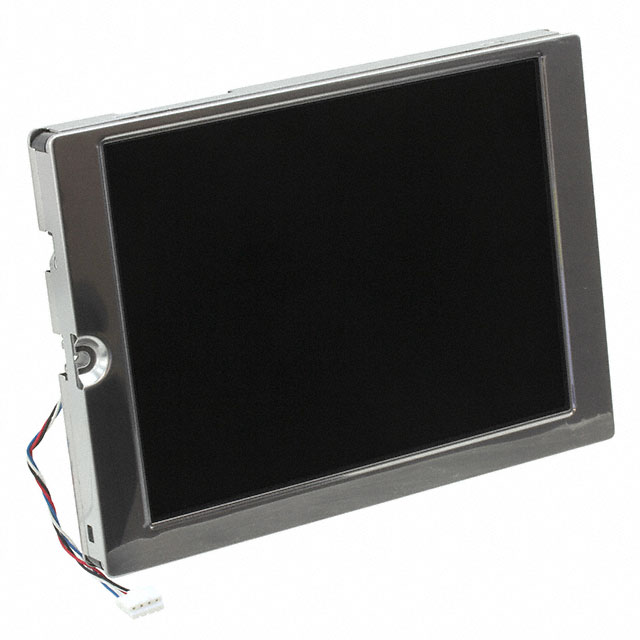

TCG057VGLCS-H50

Obsolete

Kyocera International, Inc.

LCD TFT DISPLAY VGA 5.7"

Search across all available documentation for this part.

Obsolete

Kyocera International, Inc.

LCD TFT DISPLAY VGA 5.7"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 18-Bit (RGB) 5.7" (144.78mm) 640 x 480 (VGA)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

DISPLAY TFT 5.7" VGA GLASS TOUCH

Part	Diagonal Screen Size	Diagonal Screen Size	Backlight	Dot Pixels [x]	Dot Pixels [y]	Display Type	Dot Pitch [x]	Dot Pitch [y]	Viewing Area [y]	Viewing Area [z]	Graphics Color	Display Mode	Interface	Dot Pixels	Viewing Area [x]
Kyocera International, Inc. TCG057VGLBV-C50	5.7 in	144.78 mm	LED	640	480	TFT - Color	0.06 mm	0.18 mm	115.2 mm	86.4 mm	Blue, Green, Red	Transmissive
Kyocera International, Inc. TCG057VGLBA-G00	5.7 in	144.78 mm	LED	640	480	TFT - Color	0.06 mm	0.18 mm	115.2 mm	86.4 mm	Blue, Green, Red	Transmissive
Kyocera International, Inc. TCG057VGLCL-G00
Kyocera International, Inc. TCG057VGLCAANN-GN20	5.7 in	144.78 mm	LED	640	480	TFT - Color					White	Transmissive	LVDS
Kyocera International, Inc. TCG057QVLBA-G20	5.7 in	144.78 mm	LED	320 pixels	240 pixels	TFT - Color	0.12 mm	0.36 mm	115.2 mm	86.4 mm	Blue, Green, Red	Transmissive		QVGA
Kyocera International, Inc. TCG057VGLCS-H50	5.7 in	144.78 mm	LED	640	480	TFT - Color	0.06 mm	0.18 mm	115.2 mm	86.4 mm	Blue, Green, Red	Transmissive
Kyocera International, Inc. TCG057VGLRCANN-GN50	5.7 in	144.78 mm				TFT - Color			100.4 mm				CMOS		127.2 mm
Kyocera International, Inc. TCG057VGLBW-D00	5.7 in	144.78 mm	LED	640	480	TFT - Color	0.06 mm	0.18 mm	115.2 mm	86.4 mm	Blue, Green, Red	Transmissive
Kyocera International, Inc. TCG057VGLCA-G00	5.7 in	144.78 mm	LED	640	480	TFT - Color	0.06 mm	0.18 mm	115.2 mm	86.4 mm	Blue, Green, Red	Transmissive
Kyocera International, Inc. TCG057VGLDDANN-HN50	5.7 in	144.78 mm	LED	640	480	TFT - Color					Blue, Green, Red	Transmissive	CMOS
