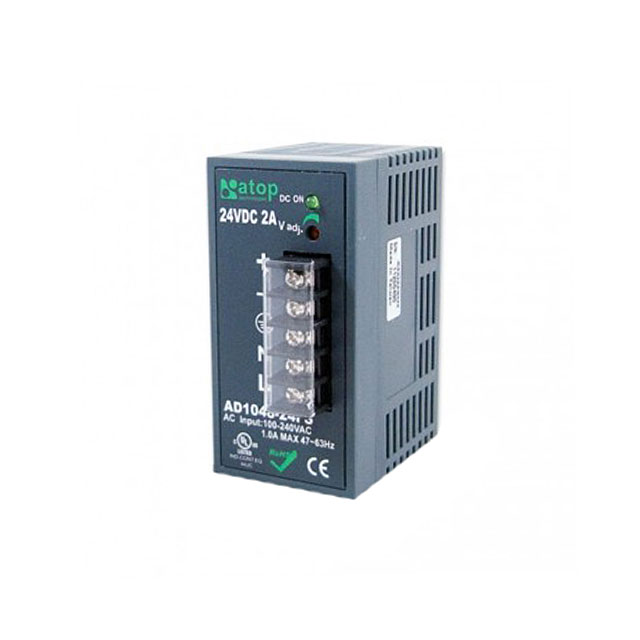

AD1048-24FS

Active

ATOP Technologies

AC/DC DIN RAIL SUPPLY 24V 48W

Search across all available documentation for this part.

Active

ATOP Technologies

AC/DC DIN RAIL SUPPLY 24V 48W

Technical Specifications

Parameters and characteristics for this part

AC/DC DIN RAIL SUPPLY 24V 48W

Part	Power (Watts)	Number of Outputs	Efficiency	Approval Agency	DC Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	DC Voltage - Input (Max) [Max]	Applications	Features	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	AC Voltage - Input [Min]	AC Voltage - Input [Max]
ATOP Technologies AD1048-24FS	48 W	1	83 %	CB, CE, cULus	120 V	2 A	370 V	ITE (Commercial)	Adjustable Output	24 V	50 °C	-20 C	AC or DC	2.97 in	96 mm	45 mm	3.78 "	1.77 "	75.5 mm	100 VAC	240 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 35.00

General part information

AC/DC DIN RAIL SUPPLY 24V 48W

Technical documentation and resources
