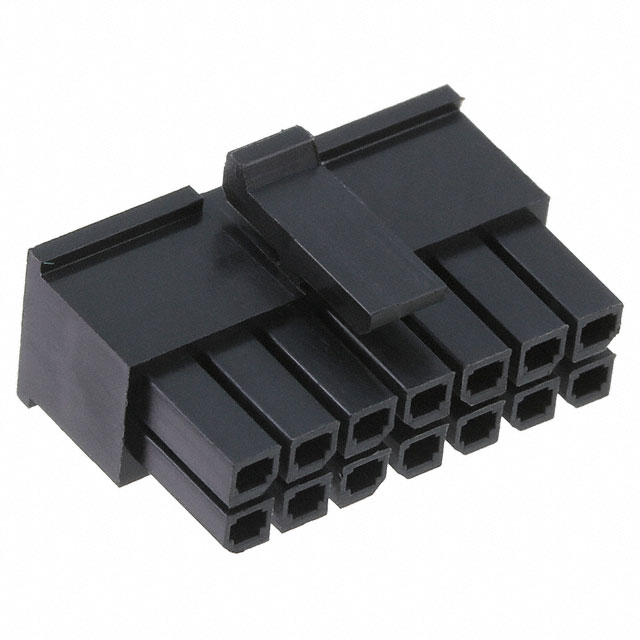

G881H1422CEU
ActiveAmphenol ICC (Commercial Products)
CONN RCPT HSG 14POS 3.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
G881H1422CEU
ActiveAmphenol ICC (Commercial Products)
CONN RCPT HSG 14POS 3.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | G881H1422CEU |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Pitch [x] | 3 mm |
| Pitch [x] | 0.118 in |
| Row Spacing [x] | 0.118 in |
| Row Spacing [x] | 3 mm |
G881H Series
| Part | Connector Type | Contact Type | Mounting Type | Contact Termination | Row Spacing [x] | Row Spacing [x] | Number of Positions | Number of Rows | Color | Fastening Type | Pitch [x] | Pitch [x] | Insulation Material | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (Commercial Products) | Receptacle | Female Socket | Free Hanging (In-Line) | Crimp | 0.118 in | 3 mm | 8 | 2 | Black | Latch Holder | 3 mm | 0.118 in | Polyamide (PA66) Nylon 6/6 | Contacts Not Included |
Amphenol ICC (Commercial Products) | Receptacle | Female Socket | Free Hanging (In-Line) | Crimp | 0.118 in | 3 mm | 2 | 2 | Black | Latch Holder | Polyamide (PA66) Nylon 6/6 | Contacts Not Included | ||
Amphenol ICC (Commercial Products) | Receptacle | Female Socket | Free Hanging (In-Line) | Crimp | 0.118 in | 3 mm | 14 | 2 | Black | Latch Holder | 3 mm | 0.118 in | Polyamide (PA66) Nylon 6/6 | Contacts Not Included |
Amphenol ICC (Commercial Products) | Receptacle | Female Socket | Free Hanging (In-Line) | Crimp | 10 | 1 | Black | Latch Holder | 3 mm | 0.118 in | Polyamide (PA66) Nylon 6/6 | Contacts Not Included | ||
Amphenol ICC (Commercial Products) | Receptacle | Female Socket | Free Hanging (In-Line) | Crimp | 7 | 1 | Black | Latch Holder | 3 mm | 0.118 in | Polyamide (PA66) Nylon 6/6 | Contacts Not Included | ||
Amphenol ICC (Commercial Products) | Receptacle | Female Socket | Free Hanging (In-Line) | Crimp | 0.118 in | 3 mm | 6 | 2 | Black | Latch Holder | 3 mm | 0.118 in | Polyamide (PA66) Nylon 6/6 | Contacts Not Included |
Amphenol ICC (Commercial Products) | Receptacle | Female Socket | Free Hanging (In-Line) | Crimp | 0.118 in | 3 mm | 12 | 2 | Black | Latch Holder | 3 mm | 0.118 in | Polyamide (PA66) Nylon 6/6 | Contacts Not Included |
Amphenol ICC (Commercial Products) | Receptacle | Female Socket | Free Hanging (In-Line) | Crimp | 6 | 1 | Black | Latch Holder | 3 mm | 0.118 in | Polyamide (PA66) Nylon 6/6 | Contacts Not Included | ||
Amphenol ICC (Commercial Products) | Receptacle | Female Socket | Free Hanging (In-Line) | Crimp | 11 | 1 | Black | Latch Holder | 3 mm | 0.118 in | Polyamide (PA66) Nylon 6/6 | Contacts Not Included | ||
Amphenol ICC (Commercial Products) | Receptacle | Female Socket | Free Hanging (In-Line) | Crimp | 12 | 1 | Black | Latch Holder | 3 mm | 0.118 in | Polyamide (PA66) Nylon 6/6 | Contacts Not Included |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 10000 | $ 0.11 | |
Description
General part information
G881H Series
14 Rectangular Connectors - Housings Receptacle Black 0.118" (3.00mm)
