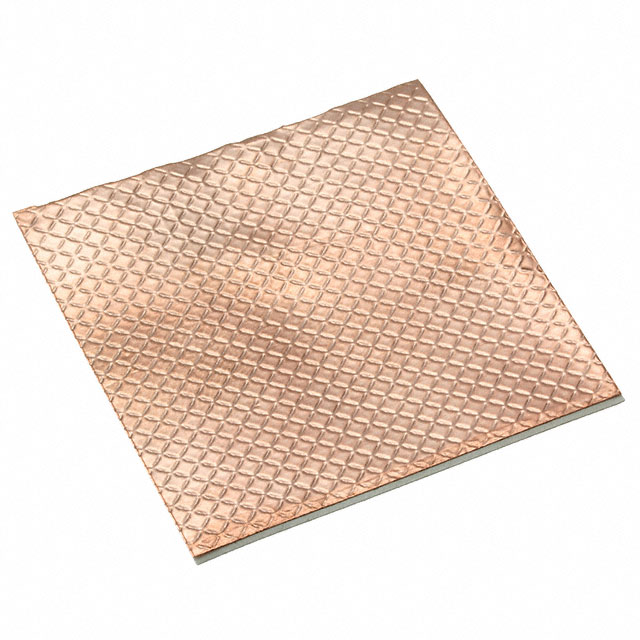

1245SQ-1.5(5)

Active

3M (TC)

RF SHLDING SHEET 1.5"X1.5" 5PK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Date Code Decipher +1

1245SQ-1.5(5)

Active

3M (TC)

RF SHLDING SHEET 1.5"X1.5" 5PK

Deep-Dive with AI

DocumentsDatasheet Date Code Decipher +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1245SQ-1.5(5)

Adhesive	Single Sided, Non-Conductive
Length	1.5 "
Length	38.1 mm
Material	Embossed Copper Foil
Shape	Square
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Thickness - Overall [custom]	0.004 "
Thickness - Overall [custom]	0.1 mm
Type	Shielding Sheet
Width	38.1 mm
Width [x]	1.5 in

5-1245 Series

Part	Shape	Shelf Life	Type	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Shelf Life Start	Material	Length	Length	Adhesive	Thickness - Overall [custom]	Thickness - Overall [custom]	Width [x]	Width	Width [x]	Length [x]	Length [x]	Width
3M (TC) 5-1245-1/2-2R	Rectangular	60 Months	Shielding Sheet	27 °C 80 °F	10 °C	Date of Manufacture	Embossed Copper Foil	50.8 mm	2 in	Non-Conductive Single Sided	0.004 "	0.1 mm
3M (TC) 1245SQ-1.5(5)	Square	60 Months	Shielding Sheet	27 °C 80 °F	10 °C	Date of Manufacture	Embossed Copper Foil	38.1 mm	1.5 "	Non-Conductive Single Sided	0.004 "	0.1 mm	1.5 in	38.1 mm
3M (TC) 5-1245-1/2-3R	Rectangular	60 Months	Shielding Sheet	27 °C 80 °F	10 °C	Date of Manufacture	Embossed Copper Foil	76.2 mm	3 in	Non-Conductive Single Sided	0.004 "	0.1 mm
3M (TC) 5-1245-1-4R	Rectangular	60 Months	Shielding Sheet	27 °C 80 °F	10 °C	Date of Manufacture	Embossed Copper Foil	101.6 mm	4 in	Non-Conductive Single Sided	0.004 "	0.1 mm	1 in	25.4 mm
3M (TC) 1245SQ-2(5)	Square	60 Months	Shielding Sheet	27 °C 80 °F	10 °C	Date of Manufacture	Embossed Copper Foil	50.8 mm	2 in	Non-Conductive Single Sided	0.004 "	0.1 mm	2 in		50.8 mm
3M (TC) 5-1245-1/2-4R	Rectangular	60 Months	Shielding Sheet	27 °C 80 °F	10 °C	Date of Manufacture	Embossed Copper Foil	101.6 mm	4 in	Non-Conductive Single Sided	0.004 "	0.1 mm
3M (TC) 5-1245-1-2R	Rectangular	60 Months	Shielding Sheet	27 °C 80 °F	10 °C	Date of Manufacture	Embossed Copper Foil	50.8 mm	2 in	Non-Conductive Single Sided	0.004 "	0.1 mm	1 in	25.4 mm
3M (TC) 5-1245-3/4S	Square	60 Months	Shielding Sheet	27 °C 80 °F	10 °C	Date of Manufacture	Embossed Copper Foil			Non-Conductive Single Sided	0.004 "	0.1 mm		19.1 mm		0.75 in	19.1 mm	0.75 in
3M (TC) 1245-0.75-2(5)	Rectangular	60 Months	Shielding Sheet	27 °C 80 °F	10 °C	Date of Manufacture	Embossed Copper Foil	50.8 mm	2 in	Non-Conductive Single Sided	0.004 "	0.1 mm		19.1 mm				0.75 in
3M (TC) 5-1245-1-3R	Rectangular	60 Months	Shielding Sheet	27 °C 80 °F	10 °C	Date of Manufacture	Embossed Copper Foil	76.2 mm	3 in	Non-Conductive Single Sided	0.004 "	0.1 mm	1 in	25.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.21

Description

General part information

5-1245 Series

RF EMI Shielding Sheet 1245 Embossed Copper Foil Non-Conductive, Single Sided 1.500" (38.10mm) X 1.500" (38.10mm) X 0.004" (0.10mm)
