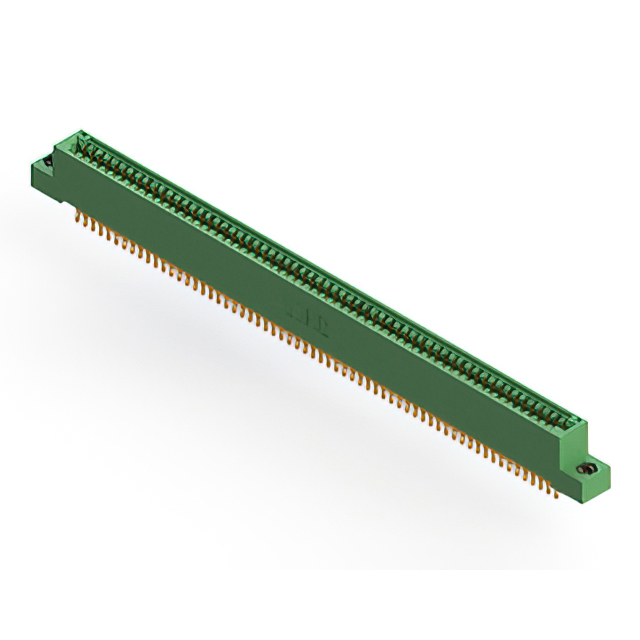

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 124 CONTACTS, PANEL MOUNT, STRAIGHT

345-124-555-208

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 124 CONTACTS, PANEL MOUNT, STRAIGHT

Description Specifications Series Pricing CAD Documents

Description

General part information

345-124 Series

124 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	345-124-555-208

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Flush Mount, Top Opening, Threaded Insert, 4-40
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Straddle Mount, Board Edge
Number of Positions	62, 124
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2 rows

345-124 Series

...

Part	Number of Positions	Mounting Type	Pitch	Read Out	Contact Finish	Features	Operating Temperature (Min)	Operating Temperature (Max)	Gender	Flange Feature	Contact Type	Card Type	Color	Number of Rows	Card Thickness (Min)	Card Thickness (Max)	Termination	Contact Finish Thickness	Contact Material	Material - Insulation	Termination Rows	Flange Feature Diameter
EDAC Inc. 345-124-542-878	62 124	Through Hole	0.1 in	Dual	Gold	Card Guides	-40 °C	105 °C	Female	4-40 Threaded Insert Top Mount Opening	Cantilever	Dual Edge Non Specified	Green	2	0.054 in	0.07 in	Wire Wrap	10 Ąin	Copper Alloy	Polyester Thermoplastic	2 rows
EDAC Inc. 345-124-542-212	62 124	Through Hole	0.1 in	Dual	Gold		-40 °C	105 °C	Female	Flush Mount Side Opening Unthreaded	Cantilever	Dual Edge Non Specified	Green	2	0.054 in	0.07 in	Wire Wrap	10 Ąin	Copper Alloy	Polyester Thermoplastic	2 rows	0.128 in
EDAC Inc. 345-124-525-507	62 124	Through Hole	0.1 in	Dual	Gold		-40 °C	105 °C	Female	M3 Threaded Insert Top Mount Opening	Cantilever	Dual Edge Non Specified	Green	2	0.054 in	0.07 in	Solder	10 Ąin	Copper Alloy	Polyester Thermoplastic	2 rows
EDAC Inc. 345-124-559-888	62 124	Right Angle Through Hole	0.1 in	Dual	Gold	Card Guides	-40 °C	105 °C	Female	4-40 Threaded Insert Top Mount Opening	Cantilever	Dual Edge Non Specified	Green	2	0.054 in	0.07 in	Solder	10 Ąin	Copper Alloy	Polyester Thermoplastic	2 rows
EDAC Inc. 345-124-558-558	62 124	Right Angle Through Hole	0.1 in	Dual	Gold	Card Guides	-40 °C	105 °C	Female	4-40 Threaded Insert Top Mount Opening	Cantilever	Dual Edge Non Specified	Green	2	0.054 in	0.07 in	Wire Wrap	10 Ąin	Copper Alloy	Polyester Thermoplastic	2 rows
EDAC Inc. 345-124-541-802	62 124	Through Hole	0.1 in	Dual	Gold		-40 °C	105 °C	Female	Top Mount Opening Unthreaded	Cantilever	Dual Edge Non Specified	Green	2	0.054 in	0.07 in	Wire Wrap	10 Ąin	Copper Alloy	Polyester Thermoplastic	2 rows	0.128 in
EDAC Inc. 345-124-555-503	62 124	Board Edge Straddle Mount	0.1 in	Dual	Gold	Card Extender	-40 °C	105 °C	Female	Floating Bobbin Top Mount Opening	Cantilever	Dual Edge Non Specified	Green	2	0.054 in	0.07 in	Solder Eyelet(s)	10 Ąin	Copper Alloy	Polyester Thermoplastic	2 rows	0.116 in
EDAC Inc. 345-124-555-208	62 124	Board Edge Straddle Mount	0.1 in	Dual	Gold	Card Extender	-40 °C	105 °C	Female	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	Dual Edge Non Specified	Green	2	0.054 in	0.07 in	Solder Eyelet(s)	10 Ąin	Copper Alloy	Polyester Thermoplastic	2 rows
