CONN RCPT FMALE 8POS GOLD SOLDER

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 8POS GOLD SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

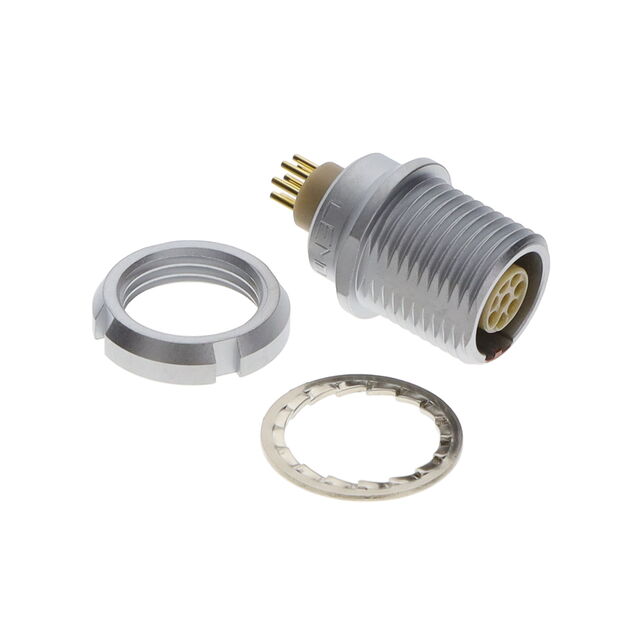

8 Position Circular Connector Receptacle, Female Sockets Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	EEA.1B.308.CLN	EEA.1B Series

Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	5 A	5 - 10 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	8	4 - 8
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	A	A
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	308	304 - 308
Shielding	Shielded	Shielded
Termination	Solder	Crimp, Solder

CONN RCPT FMALE 4POS GOLD CRIMP

Part	Current Rating (Amps)	Fastening Type	Contact Material	Primary Material	Insert Material	Termination	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Feature	Orientation	Shell Finish	Shell Size - Insert	Connector Type	Shell Material	Shielding	Contact Finish - Mating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Ingress Protection	Mounting Type
LEMO EEA.1B.304.CYM	10 A	Push-Pull	Bronze	Metal	Polyetheretherketone (PEEK)	Crimp	Silver	59 Áin	1.5 Ám	Bulkhead - Front Side Nut	A	Chrome	304	Receptacle, Female Sockets	Brass	Shielded	Gold	UL94 V-0	-55 °C	250 °C	4	IP50
LEMO EEA.1B.305.CLN	9 A	Push-Pull	Bronze	Metal	Polyetheretherketone (PEEK)	Solder	Silver	59 Áin	1.5 Ám	Bulkhead - Front Side Nut	A	Chrome	305	Receptacle, Female Sockets	Brass	Shielded	Gold	UL94 V-0	-55 °C	250 °C		IP50	Panel Mount, Through Hole
LEMO EEA.1B.308.CLN	5 A	Push-Pull	Bronze	Metal	Polyetheretherketone (PEEK)	Solder	Silver	59 Áin	1.5 Ám	Bulkhead - Front Side Nut	A	Chrome	308	Receptacle, Female Sockets	Brass	Shielded	Gold	UL94 V-0	-55 °C	250 °C	8	IP50	Panel Mount, Through Hole
LEMO EEA.1B.307.CLN	7 A	Push-Pull	Bronze	Metal	Polyetheretherketone (PEEK)	Solder	Silver	59 Áin	1.5 Ám	Bulkhead - Front Side Nut	A	Chrome	307	Receptacle, Female Sockets	Brass	Shielded	Gold	UL94 V-0	-55 °C	250 °C	7	IP50	Panel Mount, Through Hole
