FA1-NZSP-C04-1

Active

AMPHENOL RF

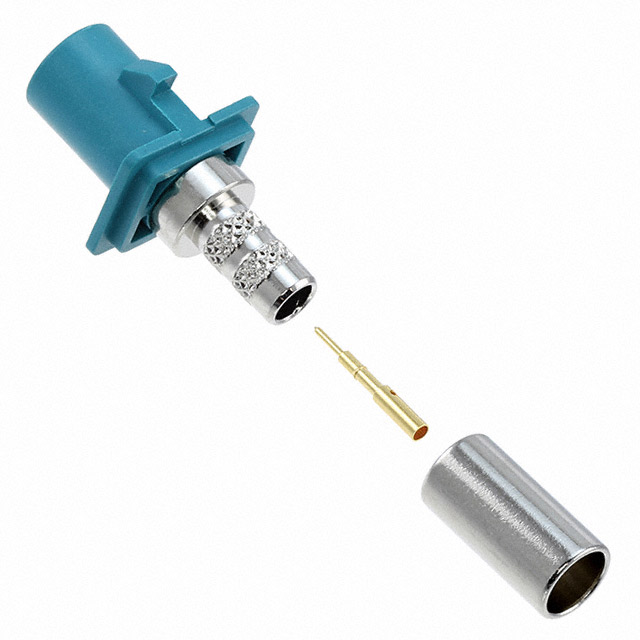

RF / COAXIAL CONNECTOR, FAKRA COAXIAL, STRAIGHT PLUG, CRIMP, 50 OHM, RG58, BRASS ALLOY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FAKRA SMB Connector Catalog

FA1-NZSP-C04-1

Active

AMPHENOL RF

RF / COAXIAL CONNECTOR, FAKRA COAXIAL, STRAIGHT PLUG, CRIMP, 50 OHM, RG58, BRASS ALLOY

Deep-Dive with AI

DocumentsDatasheet FAKRA SMB Connector Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FA1-NZSP-C04-1	FA1-NZSP Series

Body Finish	Nickel	Nickel, Gold
Body Material	Brass	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58, 188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	SMB, Fakra	SMB, Fakra
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Crimp	Crimp, Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Locking Ramp	Locking Ramp
Features	Code Z	Code Z
Frequency - Max [Max]	4 GHz	4 GHz
Impedance	50 Ohms	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.3 dB	0.3 dB
Mounting Feature	Flange	Flange
Mounting Type	-	Board Edge, Cutout, Through Hole, Right Angle, Surface Mount, Cutout, Board Edge, Through Hole
Number of Ports	1	1
Operating Temperature [Max]	100 °C	85 - 100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Termination	Crimp	Crimp, Solder

FA1-NZSP Series

RF / COAXIAL CONNECTOR, FAKRA COAXIAL, STRAIGHT PLUG, CRIMP, 50 OHM, RG58, BRASS ALLOY

Part	Body Material	Dielectric Material	Number of Ports	Insertion Loss	Contact Termination	Center Contact Material	Mounting Feature	Center Contact Plating	Impedance	Shield Termination	Fastening Type	Body Finish	Connector Style	Frequency - Max [Max]	Connector Type	Includes	Features	Cable Group	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
AMPHENOL RF FA1-NZSP-C04-1	Brass	Polytetrafluoroethylene (PTFE)	1	0.3 dB	Crimp	Brass	Flange	Gold	50 Ohms	Crimp	Locking Ramp	Nickel	Fakra, SMB	4 GHz	Male Pin, Plug	1 Connector, 1 Contact, 1 Ferrule	Code Z	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	100 °C	-40 °C
AMPHENOL RF FA1-NZSP-PCB-0	Brass	Polytetrafluoroethylene (PTFE)	1	0.3 dB	Solder	Brass		Gold	50 Ohms	Solder	Locking Ramp	Gold	Fakra, SMB	4 GHz	Male Pin, Plug		Code Z		100 °C	-40 °C	Board Edge, Cutout, Surface Mount, Through Hole, Right Angle
AMPHENOL RF FA1-NZSP-PCB-1	Brass	Polytetrafluoroethylene (PTFE)	1	0.3 dB	Solder	Brass		Gold	50 Ohms	Solder	Locking Ramp	Gold	Fakra, SMB	4 GHz	Male Pin, Plug		Code Z		100 °C	-40 °C	Board Edge, Cutout, Surface Mount
AMPHENOL RF FA1-NZSP-C04-0	Brass	Polytetrafluoroethylene (PTFE)	1	0.3 dB	Crimp	Brass	Flange	Gold	50 Ohms	Crimp	Locking Ramp	Nickel	Fakra, SMB	4 GHz	Male Pin, Plug	1 Connector, 1 Contact, 1 Ferrule	Code Z	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	100 °C	-40 °C
AMPHENOL RF FA1-NZSP-PCB-2	Brass	Polytetrafluoroethylene (PTFE)	1		Solder	Brass		Gold	50 Ohms	Solder	Locking Ramp	Gold	Fakra, SMB	4 GHz	Male Pin, Plug		Code Z		85 °C	-40 °C	Through Hole
AMPHENOL RF FA1-NZSP-C01-1	Brass	Polytetrafluoroethylene (PTFE)	1	0.3 dB	Crimp	Brass	Flange	Gold	50 Ohms	Crimp	Locking Ramp	Nickel	Fakra, SMB	4 GHz	Male Pin, Plug	1 Connector, 1 Contact, 1 Ferrule	Code Z	188, 188A, 316, LMR-100, M17/119-RG174, RG-174	100 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each	100	$ 2.80
		250	$ 2.61
		500	$ 2.56
		1000	$ 2.52

Description

General part information

FA1-NZSP Series

SMB, Fakra Connector Plug, Male Pin 50 Ohms Panel Mount Crimp
