Specification	RO3104E

Frequency	303.825 MHz
Frequency Stability	0.032 ppm
Frequency Tolerance	75 kHz
Height	0.054 in
Impedance	1 MOhms
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	No Lead, 6-SMD
Size / Dimension Length	0.118 in
Size / Dimension Width	0.118 in
Type	SAW

RO31 Series

Part	Frequency	Mounting Type	Size / Dimension Length	Size / Dimension Width	Type	Frequency Stability	Operating Temperature (Min)	Operating Temperature (Max)	Package / Case	Frequency Tolerance	Impedance	Height	Capacitance	Features	Size / Dimension Diameter
Murata Electronics RO3104A	303.825 MHz	Surface Mount	0.197 in	0.138 in	SAW	0.032 ppm	-40 °C	85 °C	4-SMD No Lead	75 kHz	1 MOhms	0.063 in
Murata Electronics RO3104E	303.825 MHz	Surface Mount	0.118 in	0.118 in	SAW	0.032 ppm	-40 °C	85 °C	6-SMD No Lead	75 kHz	1 MOhms	0.054 in
Murata Electronics RO3112D	433.42 MHz	Surface Mount	0.15 in	0.15 in	SAW	0.032 ppm	-40 °C	85 °C	6-SMD No Lead	75 kHz	1 MOhms	0.055 in	3.7 pF	Built in Capacitor
Murata Electronics RO3144E-1	916.5 MHz	Surface Mount	0.118 in	0.118 in	SAW	0.032 ppm	-40 °C	125 °C	6-SMD No Lead	150 kHz	1 MOhms	0.054 in	1.9 pF	Built in Capacitor
Murata Electronics RO3132A	312 MHz	Surface Mount	0.197 in	0.138 in	SAW	0.032 ppm	-40 °C	85 °C	4-SMD No Lead	10 ppm	1 MOhms	0.06 in
Murata Electronics RO3103E	418 MHz	Surface Mount	0.118 in	0.118 in	SAW	0.032 ppm	-40 °C	85 °C	6-SMD No Lead	10 ppm	1 MOhms	0.054 in
Murata Electronics RO3101E-1	433.92 MHz	Surface Mount	0.118 in	0.118 in	SAW	0.032 ppm	-40 °C	105 °C	6-SMD No Lead	50 kHz		0.054 in
Murata Electronics RO3156A	868.95 MHz	Surface Mount	0.197 in	0.138 in	SAW	0.032 ppm	-40 °C	85 °C	4-SMD No Lead	200 kHz	1 MOhms	0.063 in
Murata Electronics RO3156D	868.95 MHz	Surface Mount	0.15 in	0.15 in	SAW	0.032 ppm	-40 °C	85 °C	6-SMD No Lead	200 kHz	1 MOhms	0.055 in	2.2 pF	Built in Capacitor

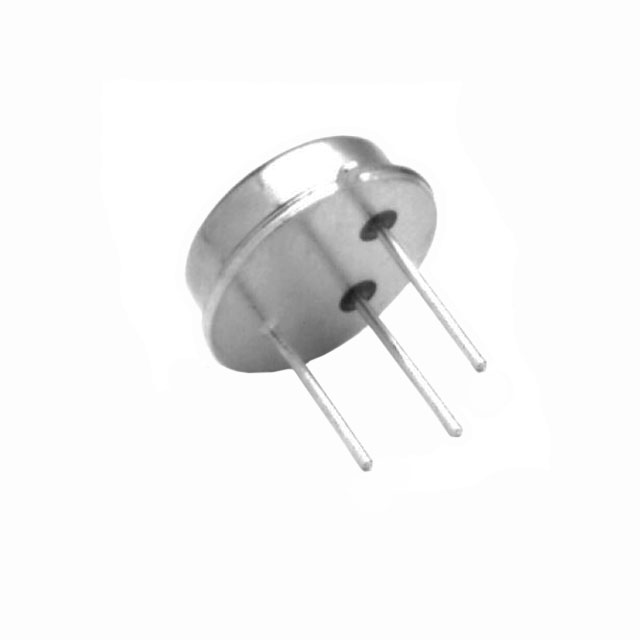

Murata Electronics RO3101	433.92 MHz	Through Hole			SAW	0.037 ppm	-40 °C	85 °C	TO-39-3 Lens Top Metal Can	75 kHz	1 MOhms	0.125 in			0.37 in
