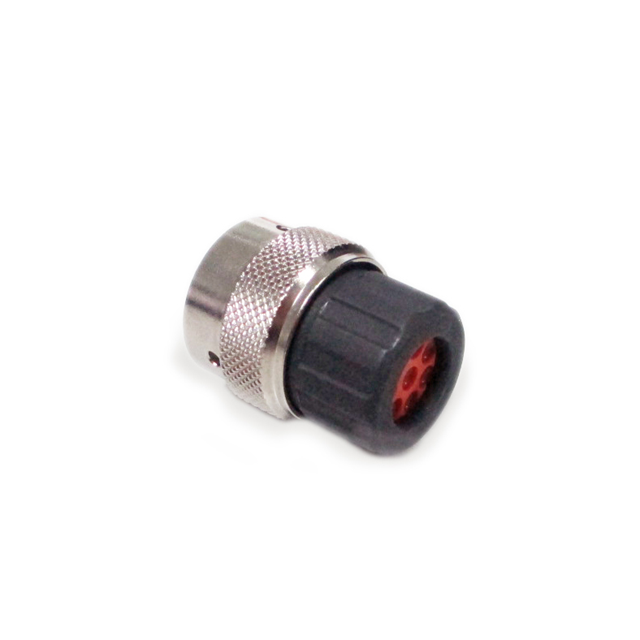

RT06144PNHEC

Active

Amphenol Sine Systems Corp

PLUG, MALE WITH O-RING SEAL AND

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

PLUG, MALE WITH O-RING SEAL AND

Technical Specifications

Parameters and characteristics for this part

Specification	RT06144PNHEC

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	2.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max]	14
Shell Size - Insert [Min]	4
Shielding	Shielded
Type	For Male Pins

Part	Housing Color	Contact Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Fastening Type	Contact Shape	Orientation	Ingress Protection	Note	Shielding	Features	Mounting Type	Shell Finish	Type	Contact Size	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Connector Type	Insert Material	Material Flammability Rating
Amphenol Sine Systems Corp RT06144PNHEC	Silver	Crimp	4	14	Bayonet Lock	Circular	N	IP67 - Dust Tight Waterproof	Contacts Not Included	Shielded	Backshell Coupling Nut	Free Hanging (In-Line)	Nickel	For Male Pins	2.5 mm	Zinc Alloy	-40 °C	105 ░C	4	Plug Housing	Thermoplastic	UL94 V-0
Amphenol Sine Systems Corp RT06144PNH	Silver	Crimp	4	14	Bayonet Lock	Circular	N	IP67 - Dust Tight Waterproof	Contacts Not Included	Shielded	Coupling Nut	Free Hanging (In-Line)	Nickel	For Male Pins	2.5 mm	Zinc Alloy	-40 °C	105 ░C	4	Plug Housing	Thermoplastic	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 21.73

General part information

4 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
