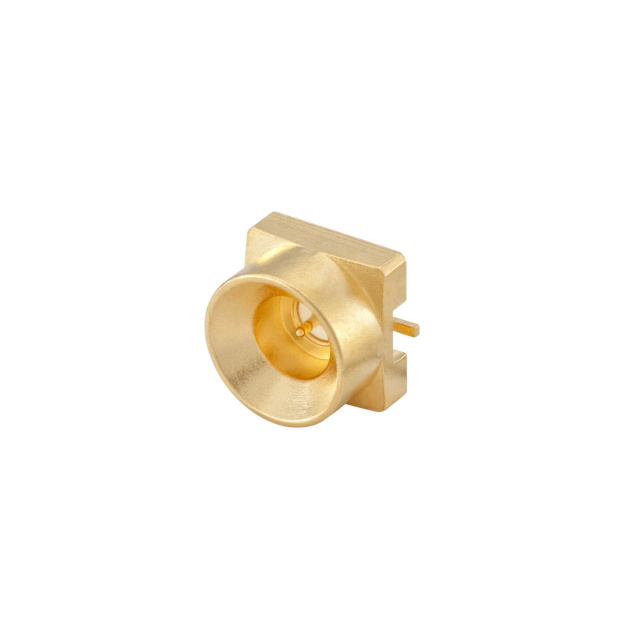

19S14K-40ML5
ActiveRosenberger
SMP STRAIGHT PLUG PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
19S14K-40ML5
ActiveRosenberger
SMP STRAIGHT PLUG PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 19S14K-40ML5 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 26.5 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 1000 |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.92 | |
| 10 | $ 8.03 | |||
| 25 | $ 7.56 | |||
| 50 | $ 7.37 | |||
| 100 | $ 7.17 | |||
| 250 | $ 6.40 | |||
| Digi-Reel® | 1 | $ 8.92 | ||
| 10 | $ 8.03 | |||
| 25 | $ 7.56 | |||
| 50 | $ 7.37 | |||
| 100 | $ 7.17 | |||
| 250 | $ 6.40 | |||
| Tape & Reel (TR) | 750 | $ 5.62 | ||
| 1500 | $ 5.16 | |||
Description
General part information
19S14K Series
SMP Connector Plug, Male Pin 50 Ohms Surface Mount Solder
