General part information

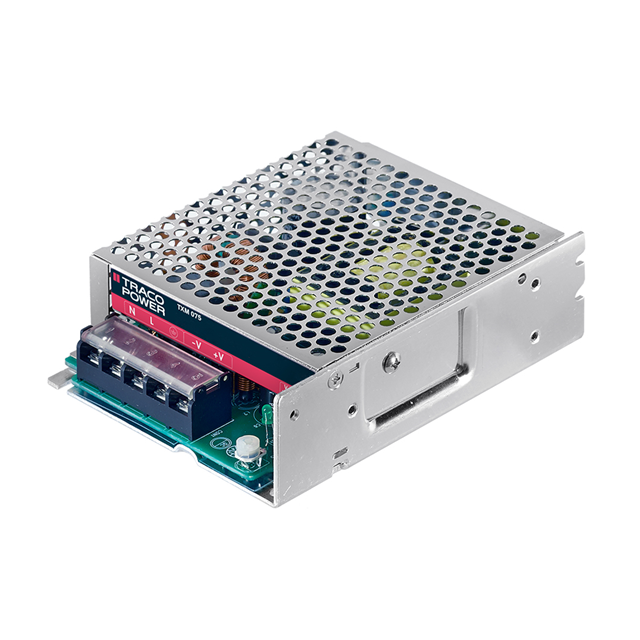

Enclosed AC DC Converters 1 Output 12V 90 ~ 264 VAC, 127 ~ 370 VDC Input
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | TXM 075-112 | TXM 075 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Approval Agency | CE, cURus | CE, cURus |
| Current - Output 1 | 6 A | 3.2 - 12 A |
| Efficiency | 85 % | 80 - 88 % |
| Features | Adjustable Output, Universal Input | Adjustable Output, Universal Input |
| Minimum Load Required | - | False |
| Mounting Type | Chassis Mount | Chassis Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Power (Watts) | 72 W | 72 - 77 W |
| Size / Dimension [x] | 129 mm | 129 mm |
| Size / Dimension [x] | 5.08 in | 5.08 in |
| Size / Dimension [y] | 99.1 mm | 99.1 mm |
| Size / Dimension [y] | 3.9 in | 3.9 in |
| Size / Dimension [z] | 1.5 " | 1.5 " |
| Size / Dimension [z] | 38.1 mm | 38.1 mm |
| Type | Enclosed | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC | 264 - 370 VDC |
| Voltage - Input [Min] | 127 VDC, 90 VAC | 90 - 127 VDC |
| Voltage - Isolation | 3000 V | 3000 V |
| Voltage - Output 1 | 12 V | 5 - 24 V |
AC/DC CONVERTER 15V 75W
| Part | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Power (Watts) | Voltage - Output 1 | Features | Applications | Voltage - Isolation | Efficiency | Mounting Type | Approval Agency | Number of Outputs | Current - Output 1 | Type | Voltage - Input [Min] | Voltage - Input [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Minimum Load Required |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Traco Power TXM 075-115 | 1.5 " | 99.1 mm | 129 mm | 5.08 in | 38.1 mm | 3.9 in | 75 W | 15 V | Adjustable Output, Universal Input | ITE (Commercial) | 3000 V | 86 % | Chassis Mount | CE, cURus | 1 | 5 A | Enclosed | 90 VAC, 127 VDC | 264 VAC, 370 VDC | -25 °C | 70 °C | |
Traco Power TXM 075-124 | 1.5 " | 99.1 mm | 129 mm | 5.08 in | 38.1 mm | 3.9 in | 77 W | 24 V | Adjustable Output, Universal Input | ITE (Commercial) | 3000 V | 88 % | Chassis Mount | CE, cURus | 1 | 3.2 A | Enclosed | 90 VAC, 127 VDC | 264 VAC, 370 VDC | -25 °C | 70 °C | |
Traco Power TXM 075-112 | 1.5 " | 99.1 mm | 129 mm | 5.08 in | 38.1 mm | 3.9 in | 72 W | 12 V | Adjustable Output, Universal Input | ITE (Commercial) | 3000 V | 85 % | Chassis Mount | CE, cURus | 1 | 6 A | Enclosed | 90 VAC, 127 VDC | 264 VAC, 370 VDC | -25 °C | 70 °C | |
Traco Power TXM 075-105 | 1.5 " | 99.1 mm | 129 mm | 5.08 in | 38.1 mm | 3.9 in | 5 V | Adjustable Output, Universal Input | ITE (Commercial) | 3000 V | 80 % | Chassis Mount | CE, cURus | 1 | 12 A | Enclosed | 90 VAC, 127 VDC | 264 VAC, 370 VDC | -25 °C | 70 °C |
