Q-1T01F0003072i

Active

Amphenol Custom Cable

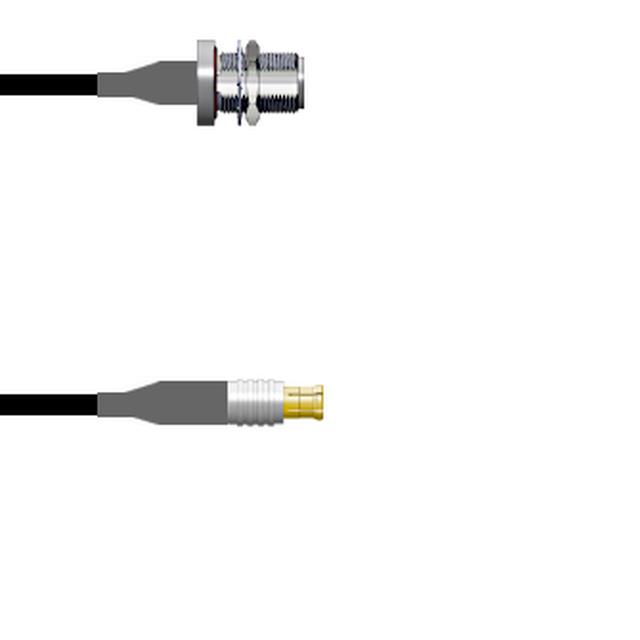

CBL ASSY MCX-NTYPE PLUG-JACK 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1T01F0003072i

Active

Amphenol Custom Cable

CBL ASSY MCX-NTYPE PLUG-JACK 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1T01F0003072i

1st Connector	MCX Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	MCX to N-Type

Q-1T01F0 Series

Part	Style	2nd Connector	1st Connector	1st Connector Mounting Type	Length	Length	1st Contact Gender	Features	2nd Connector Mounting Type	Color	Overall Impedance	Cable Type	Frequency - Max [Max]	2nd Connector Mounting Feature	2nd Contact Gender	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-1T01F0005006i	MCX to N-Type	N-Type Jack	MCX Plug	Free Hanging (In-Line)	152.4 mm	6 in	Male	Shielded	Panel Mount	Copper	50 Ohms	RG-316	6000 MHz	Bulkhead - Front Side Nut	Female
Amphenol Custom Cable Q-1T01F0005003M	MCX to N-Type	N-Type Jack	MCX Plug	Free Hanging (In-Line)	3 m	118.1 in	Male	Shielded	Panel Mount	Copper	50 Ohms	RG-316	6000 MHz	Bulkhead - Front Side Nut	Female	9.8 '
Amphenol Custom Cable Q-1T01F00032.5M	MCX to N-Type	N-Type Jack	MCX Plug	Free Hanging (In-Line)	2.5 m	98.4 in	Male	Shielded	Panel Mount	Black	50 Ohms	RG-174	6000 MHz	Bulkhead - Front Side Nut	Female	8.2 '
Amphenol Custom Cable Q-1T01F0003072i	MCX to N-Type	N-Type Jack	MCX Plug	Free Hanging (In-Line)	1.8 m	72 in	Male	Shielded	Panel Mount	Black	50 Ohms	RG-174	6000 MHz	Bulkhead - Front Side Nut	Female	6 ft
Amphenol Custom Cable Q-1T01F0003108i	MCX to N-Type	N-Type Jack	MCX Plug	Free Hanging (In-Line)	2.7 m	108 in	Male	Shielded	Panel Mount	Black	50 Ohms	RG-174	6000 MHz	Bulkhead - Front Side Nut	Female	9 ft
Amphenol Custom Cable Q-1T01F0003.75M	MCX to N-Type	N-Type Jack	MCX Plug	Free Hanging (In-Line)	750 mm	29.53 "	Male	Shielded	Panel Mount	Black	50 Ohms	RG-174	6000 MHz	Bulkhead - Front Side Nut	Female
Amphenol Custom Cable Q-1T01F0003018i	MCX to N-Type	N-Type Jack	MCX Plug	Free Hanging (In-Line)			Male	Shielded	Panel Mount	Black	50 Ohms	RG-174	6000 MHz	Bulkhead - Front Side Nut	Female		457.2 mm	457.2 mm
Amphenol Custom Cable Q-1T01F0003006i	MCX to N-Type	N-Type Jack	MCX Plug	Free Hanging (In-Line)	152.4 mm	6 in	Male	Shielded	Panel Mount	Black	50 Ohms	RG-174	6000 MHz	Bulkhead - Front Side Nut	Female
Amphenol Custom Cable Q-1T01F00052.5M	MCX to N-Type	N-Type Jack	MCX Plug	Free Hanging (In-Line)	2.5 m	98.4 in	Male	Shielded	Panel Mount	Copper	50 Ohms	RG-316	6000 MHz	Bulkhead - Front Side Nut	Female	8.2 '
Amphenol Custom Cable Q-1T01F0005036i	MCX to N-Type	N-Type Jack	MCX Plug	Free Hanging (In-Line)	91.44 cm	36 in	Male	Shielded	Panel Mount	Copper	50 Ohms	RG-316	6000 MHz	Bulkhead - Front Side Nut	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 73.56
		25	$ 72.14
		50	$ 70.72
		100	$ 69.30
		250	$ 67.88

Description

General part information

Q-1T01F0 Series

Cable Assembly Coaxial MCX to N-Type RG-174 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available
