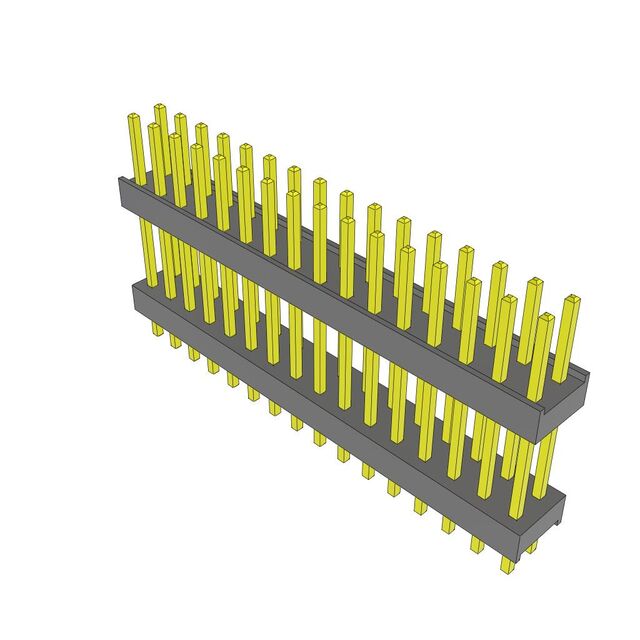

DW-16-10-L-D-503

Active

Samtec Inc.

CONN HDR 32POS 0.1 STACK T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFlexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch XW Print +2

DW-16-10-L-D-503

Active

Samtec Inc.

CONN HDR 32POS 0.1 STACK T/H

Deep-Dive with AI

DocumentsFlexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch XW Print +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DW-16-10-L-D-503

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin	21.082 mm
Length - Overall Pin [x]	0.83 in
Length - Post (Mating) [x]	5.512 mm
Length - Post (Mating) [x]	0.217 in
Length - Stack Height [x]	12.776 mm
Length - Stack Height [x]	0.503 in
Length - Tail [x]	0.11 in
Length - Tail [x]	2.794 mm
Mounting Type	Through Hole
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

DW-16-10 Series

Part	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Mounting Type	Length - Overall Pin [x]	Length - Overall Pin	Number of Rows	Termination	Length - Tail [x]	Length - Tail [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Pitch [x]	Pitch [x]	Length - Stack Height [x]	Length - Stack Height [x]	Color	Contact Finish - Post (Mating)	Row Spacing [x]	Row Spacing	Number of Positions
Samtec Inc. DW-16-10-F-D-511	0.209 in	5.309 mm	Through Hole	0.83 in	21.082 mm	2	Solder	0.11 in	2.794 mm	3 Áin	0.076 Ám	2.54 mm	0.1 in	0.511 in	12.979 mm	Black	Gold	0.1 in	2.54 mm
Samtec Inc. DW-16-10-T-S-635	0.085 in	2.159 mm	Through Hole	0.83 in	21.082 mm	1	Solder	0.11 in	2.794 mm			2.54 mm	0.1 in	0.635 in	16.129 mm	Black	Tin			16
Samtec Inc. DW-16-10-L-S-540	0.18 in	4.572 mm	Through Hole	0.83 in	21.082 mm	1	Solder	0.11 in	2.794 mm	10 Áin	0.25 Ám	2.54 mm	0.1 in	0.54 in	13.716 mm	Black	Gold			16
Samtec Inc. DW-16-10-G-D-470	0.25 in	6.35 mm	Through Hole	0.83 in	21.082 mm	2	Solder	0.11 in	2.794 mm	10 Áin	0.25 Ám	2.54 mm	0.1 in	0.47 in	11.938 mm	Black	Gold	0.1 in	2.54 mm
Samtec Inc. DW-16-10-L-D-503	0.217 in	5.512 mm	Through Hole	0.83 in	21.082 mm	2	Solder	0.11 in	2.794 mm	10 Áin	0.25 Ám	2.54 mm	0.1 in	0.503 in	12.776 mm	Black	Gold	0.1 in	2.54 mm
Samtec Inc. DW-16-10-G-D-400	0.32 in	8.128 mm	Through Hole	0.83 in	21.082 mm	2	Solder	0.11 in	2.794 mm	10 Áin	0.25 Ám	2.54 mm	0.1 in	0.4 in	10.16 mm	Black	Gold	0.1 in	2.54 mm
Samtec Inc. DW-16-10-F-S-315	0.405 in	10.287 mm	Through Hole	0.83 in	21.082 mm	1	Solder	0.11 in	2.794 mm	3 Áin	0.076 Ám	2.54 mm	0.1 in	0.315 in	8 mm	Black	Gold			16
Samtec Inc. DW-16-10-G-D-545	0.175 in	4.445 mm	Through Hole	0.83 in	21.082 mm	2	Solder	0.11 in	2.794 mm	10 Áin	0.25 Ám	2.54 mm	0.1 in	0.545 in	13.843 mm	Black	Gold	0.1 in	2.54 mm
Samtec Inc. DW-16-10-L-S-250-LL	0.47 in	11.938 mm	Through Hole	0.83 in	21.082 mm	1	Solder	0.11 in	2.794 mm	10 Áin	0.25 Ám	2.54 mm	0.1 in	0.25 in	6.35 mm	Black	Gold			16
Samtec Inc. DW-16-10-G-S-500	0.22 in	5.588 mm	Through Hole	0.83 in	21.082 mm	1	Solder	0.11 in	2.794 mm	10 Áin	0.25 Ám	2.54 mm	0.1 in	0.5 in	12.7 mm	Black	Gold			16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.77

Description

General part information

DW-16-10 Series

32 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole

Documents

Technical documentation and resources

Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch

XW Print

Datasheet

DW Datasheet

Datasheet
