84-5341.2B20
ActiveEAO

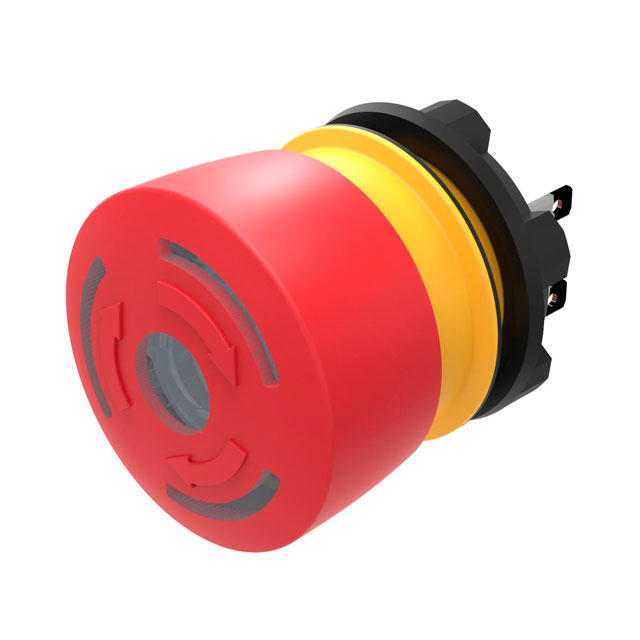

SWITCH ESTOP TWIST RESET 5A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
84-5341.2B20
ActiveEAO
SWITCH ESTOP TWIST RESET 5A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 84-5341.2B20 |
|---|---|
| Circuit | DPST-NC |
| Current Rating (Amps) | 5 A |
| Features | Illuminated (Red) |
| Ingress Protection | IP67, IP65 |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 22.3 mm |
| Reset Operation | Twist |
| Switch Function | On-Off |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 57.54 | |
| 5 | $ 50.24 | |||
| 10 | $ 47.38 | |||
| 25 | $ 43.84 | |||
| 50 | $ 41.33 | |||
| 100 | $ 38.96 | |||
84-5341 Series
SWITCH ESTOP TWIST RESET 5A 250V
| Part | Mounting Type | Termination Style | Termination Style | Termination Style | Features | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Voltage Rating - AC | Current Rating (Amps) | Circuit | Reset Operation | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 84-5341.2B20 | Panel Mount, Front | 0.11 in | Quick Connect, Solder | 2.8 mm | Illuminated (Red) | 65 °C | -25 °C | On-Off | 22.3 mm | 250 V | 250 V | 5 A | DPST-NC | Twist | IP65, IP67 |
Description
General part information
84-5341 Series
SWITCH ESTOP TWIST RESET 5A 250V
