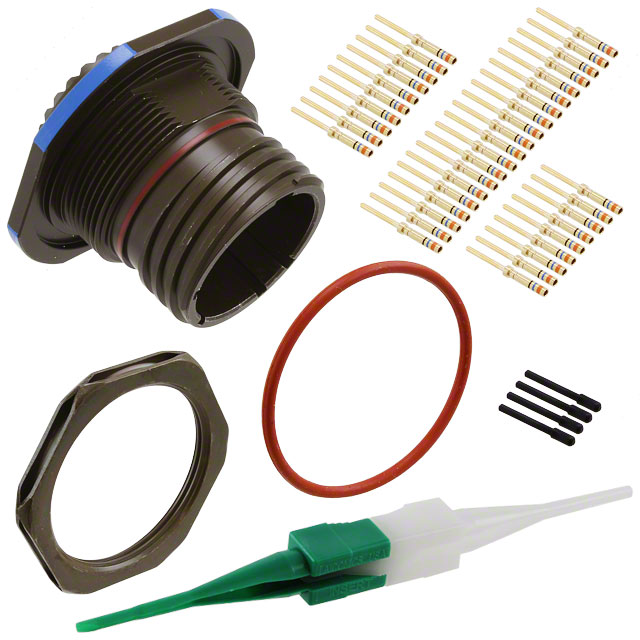

D38999/24WD35PN

Active

ITT Cannon, LLC

CONN RCPT MALE 37POS GOLD CRIMP

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN RCPT MALE 37POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/24WD35PN

Applications	Aviation, Marine, Military
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Ingress Protection	Environment Resistant
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	37
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	15
Termination	Crimp

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Mounting Feature	Contact Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Connector Type	Termination	Shell Material	Contact Finish - Mating	Shell Finish	Color	Number of Positions	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Ingress Protection
ITT Cannon, LLC D38999/24WD35PN	1.27 µm	50 µin	N	Bulkhead - Front Side Nut	Copper Alloy	15	35	Male Pins Receptacle	Crimp	Aluminum Alloy	Gold	Olive Drab Cadmium	Olive Drab	37	Aviation Marine Military	-65 ░C	347 °F	Metal	Environment Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

37 Position Circular Connector Receptacle, Male Pins Crimp
