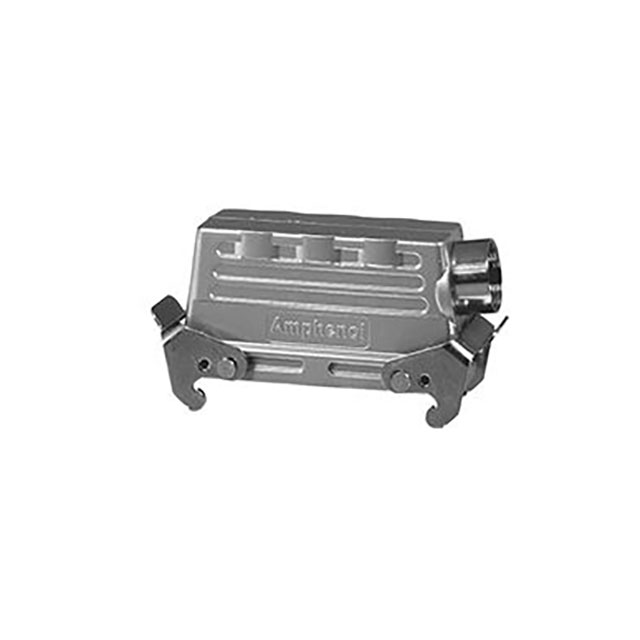

C14610G0245028

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE24 PG21

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE24 PG21

Technical Specifications

Parameters and characteristics for this part

Specification	C14610G0245028

Connector Type	Hood
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E24
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	76 mm
Size / Dimension [z]	2.992 in
Style	Side Entry
Thread Size	PG21

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Thread Size	Style	Housing Material	Size	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Connector Type
Amphenol Tuchel Industrial C14610G0245028	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	PG21	Side Entry	Aluminum Die Cast	E24	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	Locking Clip (2) on Hood	Hood

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	45	$ 23.22

General part information

Hood Connector Side Entry PG21 E24 IP65 - Dust Tight, Water Resistant
