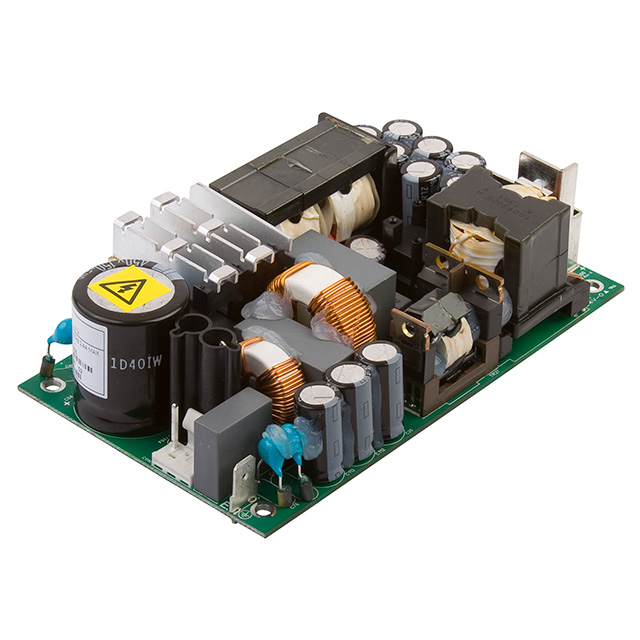

CCB200PS12

Active

XP POWER

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE & MEDICAL, 1 OUTPUT, 200 W, 80V AC TO 264V AC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

CCB200PS12

Active

XP POWER

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE & MEDICAL, 1 OUTPUT, 200 W, 80V AC TO 264V AC

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CCB200PS12

Applications	ITE (Commercial), Medical
Approval Agency	UL, TUV, CB
Current - Output 1	16.7 A
Efficiency	95 %
Features	Standby Output, Universal Input, PFC, Adjustable Output, Remote On/Off, Remote Sense
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	200 W
Size / Dimension [x]	127 mm
Size / Dimension [x]	5 in
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	1.43 in
Size / Dimension [z]	36.3 mm
Standard Number	62368-1
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	80 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	12 V

CCB200 Series

Part	Current - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Type	Voltage - Output 1	Standard Number	Applications	Mounting Type	Number of Outputs	Voltage - Isolation	Efficiency	Power (Watts)	Features
XP POWER CCB200PS28	7.1 A	1.43 in	127 mm	3 "	5 in	76.2 mm	36.3 mm	CB TUV UL	264 VAC	80 VAC	Open Frame	28 V	62368-1	ITE (Commercial) Medical	Chassis Mount	1	4000 V	95 %	199 W	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input
XP POWER CCB200PS15	13.3 A	1.43 in	127 mm	3 "	5 in	76.2 mm	36.3 mm	CB TUV UL	264 VAC	80 VAC	Open Frame	15 V	62368-1	ITE (Commercial) Medical	Chassis Mount	1	4000 V	95 %	200 W	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input
XP POWER CCB200PS12	16.7 A	1.43 in	127 mm	3 "	5 in	76.2 mm	36.3 mm	CB TUV UL	264 VAC	80 VAC	Open Frame	12 V	62368-1	ITE (Commercial) Medical	Chassis Mount	1	4000 V	95 %	200 W	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 179.22
Newark	Each	1	$ 179.22
		5	$ 173.84
		10	$ 168.47
		25	$ 161.30
		100	$ 150.54

Description

General part information

CCB200 Series

The CCB200PS12 from XP Power is a CCB200 series 200W convection cooled AC to DC power supply. This power supply has IT and Medical (BF) safety approvals. It has input current of 1.8A typical at 115VAC (full load), 0.9A typical at 230VAC (full load) and inrush current of 30A typical at 230VAC, cold start at 25°C. The patient leakage current is 100µA maximum at 264VAC, 60Hz and input protection is provided by internal T5.0 A/250V fuse in line and neutral. The power supply has ripple and noise of 1% pk-pk, 20MHz bandwidth. It features overvoltage protection (115 to 140% Vnom, recycle input to reset (V1 only)), overload protection (110 - 150% Inom V1) and short circuit protection (continuous trip and restart (hicc-up mode)). Isolation is 4000VAC input to output 2 x MOPP, 1500VAC input to ground 1 x MOPP and 1500VAC output to ground 1 x MOPP. It is approved by IEC60950-1 CB report, UL60950-1, TUV, EN60950-1, IEC60601-1 CB report, UL60601-1 and TUV 60601-1 safety approvals.
