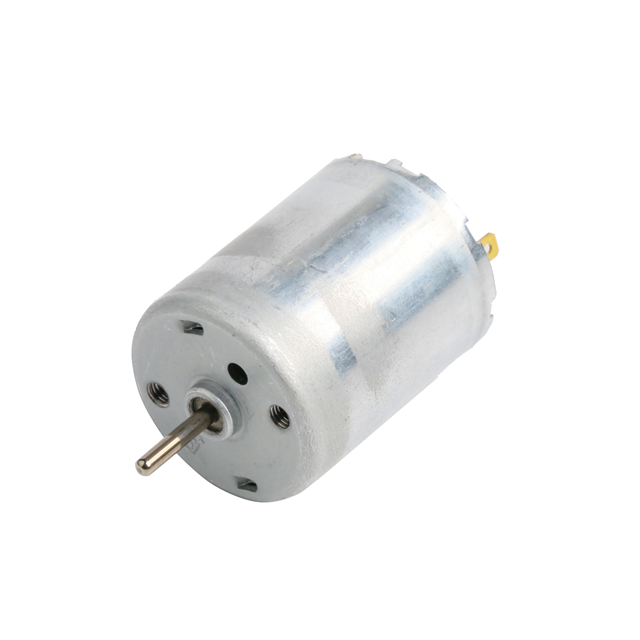

PC280LG-303
ActiveJohnson Motor
LOW VOLTAGE DC MOTORS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PC280LG-303
ActiveJohnson Motor
LOW VOLTAGE DC MOTORS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PC280LG-303 | PC280LG Series |
|---|---|---|
| Diameter - Shaft [diameter] | 2 mm | 2 mm |
| Diameter - Shaft [diameter] | 0.079 in | 0.079 in |
| Function | Standard | Standard |
| Length - Shaft and Bearing | - | 7.65 mm |
| Length - Shaft and Bearing | - | 0.301 in |
| Motor Type | Brushed | Brushed |
| Mounting Hole Spacing | 17 mm | 17 mm |
| Mounting Hole Spacing | 0.669 " | 0.669 " |
| Operating Temperature [Max] [custom] | 55 °C | 55 °C |
| Operating Temperature [Min] [custom] | -10 °C | -10 °C |
| Power - Rated | 2.2 W | 2.2 - 2.9 W |
| RPM | 4800 RPM | 4800 - 5200 RPM |
| Size / Dimension [diameter] | 1 in | 1 in |
| Size / Dimension [diameter] | 25.4 mm | 25.4 mm |
| Termination Style | Solder Tab | Solder Tab |
| Torque - Max Momentary (oz-in / mNm) | - | 0.48 - 4.52 oz-in |
| Torque - Max Momentary (oz-in / mNm) | - | 3.42 mNm |
| Torque - Max Momentary (oz-in / mNm) | - | 0.64 oz-in |
| Torque - Rated (oz-in / mNm) | 0.32 oz-in | 0.32 oz-in |
| Torque - Rated (oz-in / mNm) | 2.3 mNm | 2.3 mNm |
| Type | DC Motor | DC Motor |
| Voltage - Rated | 3 VDC | 3 - 18 VDC |
| Weight | 48.19 g | 48.19 - 51.03 g |
| Weight | 0.106 lb | 0.106 - 0.113 lb |
PC280LG Series
LOW VOLTAGE DC MOTORS
| Part | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Voltage - Rated | Function | Weight | Weight | Torque - Max Momentary (oz-in / mNm) | Torque - Max Momentary (oz-in / mNm) | RPM | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Type | Termination Style | Size / Dimension [diameter] | Size / Dimension [diameter] | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Mounting Hole Spacing | Mounting Hole Spacing | Power - Rated | Motor Type | Operating Temperature [Max] [custom] | Operating Temperature [Min] [custom] | Torque - Max Momentary (oz-in / mNm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Johnson Motor PC280LG-302 | 7.65 mm | 0.301 in | 12 VDC | Standard | 51.03 g | 0.113 lb | 0.48 oz-in | 3.42 mNm | 5200 RPM | 0.32 oz-in | 2.3 mNm | DC Motor | Solder Tab | 1 in | 25.4 mm | 2 mm | 0.079 in | 17 mm | 0.669 " | 2.9 W | Brushed | 55 °C | -10 °C | |
Johnson Motor PC280LG-303 | 3 VDC | Standard | 48.19 g | 0.106 lb | 4800 RPM | 0.32 oz-in | 2.3 mNm | DC Motor | Solder Tab | 1 in | 25.4 mm | 2 mm | 0.079 in | 17 mm | 0.669 " | 2.2 W | Brushed | 55 °C | -10 °C | |||||
Johnson Motor PC280LG-301 | 18 VDC | Standard | 4.52 mNm | DC Motor | Solder Tab | 1 in | 25.4 mm | 2 mm | 0.079 in | 17 mm | 0.669 " | Brushed | 55 °C | -10 °C | 0.64 oz-in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.33 | |
Description
General part information
PC280LG Series
Brushed DC Motor Standard 4800 RPM 2.2W 3VDC
