PC280LG-302

Obsolete

Johnson Motor

LOW VOLTAGE DC MOTORS

Search across all available documentation for this part.

Obsolete

Johnson Motor

LOW VOLTAGE DC MOTORS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PC280LG-302	PC280LG Series

Diameter - Shaft [diameter]	2 mm	2 mm
Diameter - Shaft [diameter]	0.079 in	0.079 in
Function	Standard	Standard
Length - Shaft and Bearing [x]	7.65 mm	7.65 mm
Length - Shaft and Bearing [x]	0.301 in	0.301 in
Motor Type	Brushed	Brushed
Mounting Hole Spacing	17 mm	17 mm
Mounting Hole Spacing	0.669 "	0.669 "
Operating Temperature [Max] [custom]	55 °C	55 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Power - Rated	2.9 W	2.2 - 2.9 W
RPM	5200 RPM	4800 - 5200 RPM
Size / Dimension [diameter]	1 in	1 in
Size / Dimension [diameter]	25.4 mm	25.4 mm
Termination Style	Solder Tab	Solder Tab
Torque - Max Momentary (oz-in / mNm)	0.48 oz-in	0.48 - 4.52 oz-in
Torque - Max Momentary (oz-in / mNm)	3.42 mNm	3.42 mNm
Torque - Max Momentary (oz-in / mNm)	-	0.64 oz-in
Torque - Rated (oz-in / mNm)	0.32 oz-in	0.32 oz-in
Torque - Rated (oz-in / mNm)	2.3 mNm	2.3 mNm
Type	DC Motor	DC Motor
Voltage - Rated	12 VDC	3 - 18 VDC
Weight	51.03 g	48.19 - 51.03 g
Weight	0.113 lb	0.106 - 0.113 lb

LOW VOLTAGE DC MOTORS

Part	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Voltage - Rated	Function	Weight	Weight	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	RPM	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Type	Termination Style	Size / Dimension [diameter]	Size / Dimension [diameter]	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Mounting Hole Spacing	Mounting Hole Spacing	Power - Rated	Motor Type	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Torque - Max Momentary (oz-in / mNm)
Johnson Motor PC280LG-302	7.65 mm	0.301 in	12 VDC	Standard	51.03 g	0.113 lb	0.48 oz-in	3.42 mNm	5200 RPM	0.32 oz-in	2.3 mNm	DC Motor	Solder Tab	1 in	25.4 mm	2 mm	0.079 in	17 mm	0.669 "	2.9 W	Brushed	55 °C	-10 °C
Johnson Motor PC280LG-303			3 VDC	Standard	48.19 g	0.106 lb			4800 RPM	0.32 oz-in	2.3 mNm	DC Motor	Solder Tab	1 in	25.4 mm	2 mm	0.079 in	17 mm	0.669 "	2.2 W	Brushed	55 °C	-10 °C
Johnson Motor PC280LG-301			18 VDC	Standard			4.52 mNm					DC Motor	Solder Tab	1 in	25.4 mm	2 mm	0.079 in	17 mm	0.669 "		Brushed	55 °C	-10 °C	0.64 oz-in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

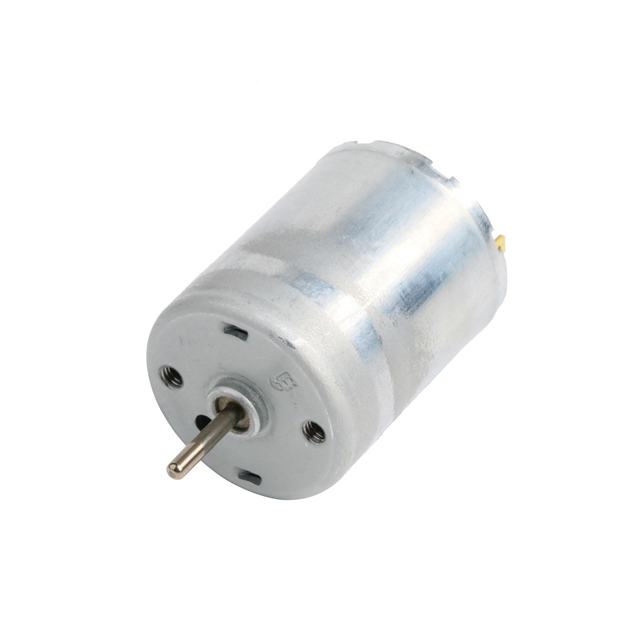

Brushed DC Motor Standard 5200 RPM 2.9W 12VDC
