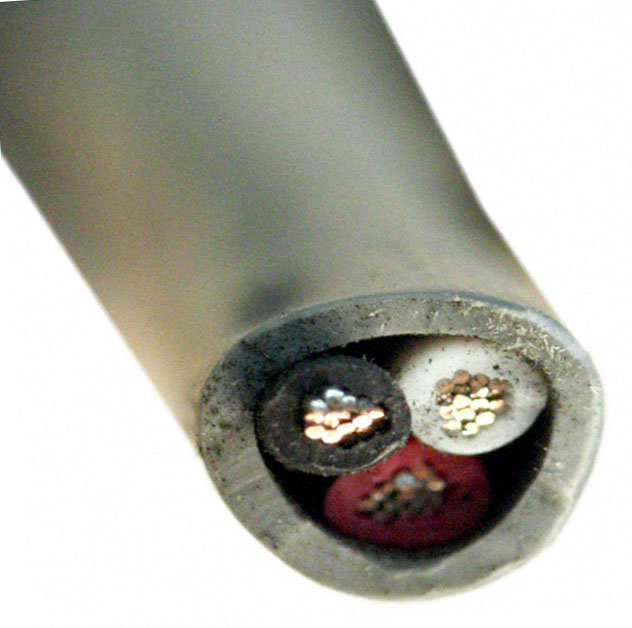

C2831A.41.10
ActivePrysmian Group
CABLE 3COND 18AWG GRAY 100'
Deep-Dive with AI
Search across all available documentation for this part.
C2831A.41.10
ActivePrysmian Group
CABLE 3COND 18AWG GRAY 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C2831A.41.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Annealed Tinned |
| Conductor Strand [custom] | 16 |
| Conductor Strand [custom] | 30 AWG |
| Jacket (Insulation) Diameter [diameter] | 5.99 mm |
| Jacket (Insulation) Diameter [diameter] | 0.236 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 3 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Ratings | ASTM B-33 |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 120.43 | |
| 5 | $ 98.53 | |||
| 10 | $ 76.64 | |||
| Spool | 1000 | $ 0.62 | ||
| 2000 | $ 0.59 | |||
| 3000 | $ 0.57 | |||
| 5000 | $ 0.55 | |||
| 7000 | $ 0.54 | |||
| 10000 | $ 0.52 | |||
Description
General part information
C2831 Series
3 Conductor Multi-Conductor Cable Gray 18 AWG 100.0' (30.5m)
Documents
Technical documentation and resources
No documents available
