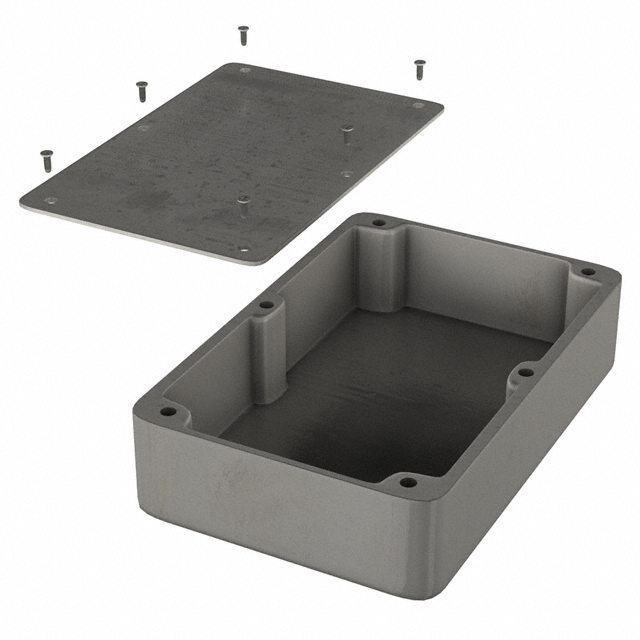

1550G

Active

Hammond Manufacturing

BOX ALUM 8.74"L X 5.75"W

Deep-Dive with AI

Search across all available documentation for this part.

1550G

Active

Hammond Manufacturing

BOX ALUM 8.74"L X 5.75"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1550G

Area (L x W)	50.2 in²
Area (L x W)	324 cm²
Color	Unpainted
Container Type	Box
Design	Cover Included
Material	Aluminum
Ratings	IP54
Size / Dimension [x]	222 mm
Size / Dimension [x]	8.74 "
Size / Dimension [y]	146 mm
Size / Dimension [y]	5.748 in
Thickness	0.079 in
Thickness	2.01 mm

1550 Series

...

Part	Accessory Type	For Use With/Related Products	Area (L x W)	Area (L x W)	Color	Height [z]	Height [z]	Design	Thickness	Thickness	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Features	Container Type	Ratings	Material	Height [custom]	Height [custom]	Area (L x W) [custom]	Area (L x W) [custom]	Thickness
Hammond Manufacturing 1550NEGASKET	Gasket Seal	1550N Series
Hammond Manufacturing 1550Z220BK			50.5 in²	326 cm²	Black	3.248 in	82.5 mm	Cover Included	0.125 in	3.18 mm	222.5 mm	8.76 in	146.51 mm	5.768 in	Wall Mount Watertight	Box	IP66 NEMA 1 NEMA 12 NEMA 13 NEMA 4 NEMA 4X	Thick Wall Aluminum
Hammond Manufacturing 1550Z113			16.2 in²	105 cm²	Unpainted			Cover Included	0.118 in	3 mm	115.39 mm	4.543 in	90.4 mm	3.559 "	Wall Mount Watertight	Box	IP66 NEMA 1 NEMA 12 NEMA 13 NEMA 4 NEMA 4X	Thick Wall Aluminum	2.181 in	55.4 mm
Hammond Manufacturing 1550WEBK			32.1 in²	207 cm²	Black			Cover Included	0.079 in	2.01 mm	170.99 mm	6.732 in	121.01 mm	4.764 in	Watertight	Box	IP66	Aluminum
Hammond Manufacturing 1550WJ			74.5 in²	481 cm²	Unpainted	2.622 in	66.6 mm	Cover Included	0.098 in	2.49 mm	275 mm	10.827 in	175 mm	6.89 in	Watertight	Box	IP66	Aluminum
Hammond Manufacturing 1550Z139BK					Black	4.016 in	102.01 mm	Cover Included	0.121 in	3.07 mm	159.41 mm	6.276 "	159.41 mm	6.276 "	Wall Mount Watertight	Box	IP66 NEMA 1 NEMA 12 NEMA 13 NEMA 4 NEMA 4X	Thick Wall Aluminum			39.3 in²	254 cm²
Hammond Manufacturing 1550GBK			50.2 in²	324 cm²	Black			Cover Included	0.079 in	2.01 mm	222 mm	8.74 "	146 mm	5.748 in		Box	IP54	Aluminum
Hammond Manufacturing 1550Q			5.11 in²	33 cm²	Unpainted	1.185 in	30.1 mm	Cover Included	0.059 in	1.5 mm	60 mm	2.362 in	55 mm	2.165 in		Box	IP54	Aluminum
Hammond Manufacturing 1550D			11.5 in²	74 cm²	Unpainted			Cover Included		0.071 in	114.5 mm	4.508 in	64 mm	2.52 "		Box	IP54	Aluminum					1.8 mm
Hammond Manufacturing 1550G			50.2 in²	324 cm²	Unpainted			Cover Included	0.079 in	2.01 mm	222 mm	8.74 "	146 mm	5.748 in		Box	IP54	Aluminum

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.88
		5	$ 23.82
		10	$ 22.26
		25	$ 20.36
		50	$ 19.02
		100	$ 18.57

Description

General part information

1550 Series

Box Aluminum Unpainted Cover Included 8.740" L x 5.748" W (222.00mm x 146.00mm) X 2.169" (55.09mm)

Documents

Technical documentation and resources

No documents available
