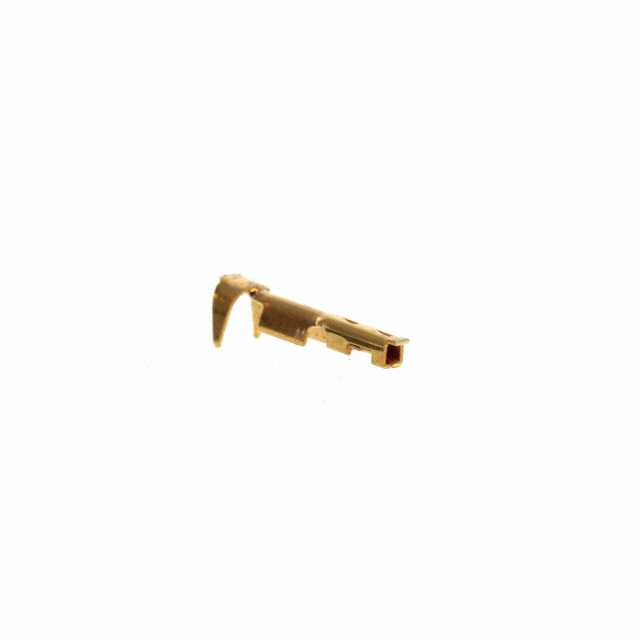

47745-002LF
ActiveAmphenol ICC (FCI)
CONN SOCKET 22-26AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
47745-002LF
ActiveAmphenol ICC (FCI)
CONN SOCKET 22-26AWG CRIMP GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 47745-002LF |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 1.02 Ám |
| Contact Finish Thickness | 40 Áin |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.68 | |
| 10 | $ 0.52 | |||
| 25 | $ 0.47 | |||
| 50 | $ 0.43 | |||
| 100 | $ 0.40 | |||
| 250 | $ 0.36 | |||
| 500 | $ 0.33 | |||
| 1000 | $ 0.31 | |||
| 2500 | $ 0.28 | |||
Description
General part information
47745 Series
Socket Contact Gold 22-26 AWG Crimp
