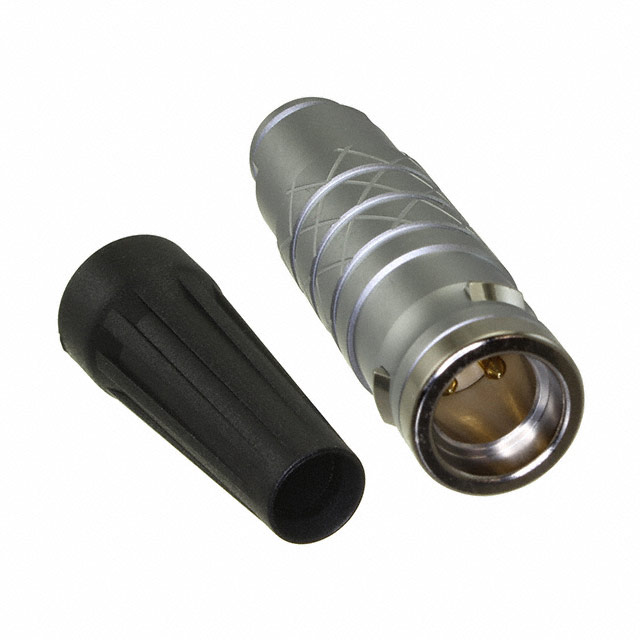

FLKD-02FGMS-GCP-215
ActiveAmphenol LTW
CONN PLUG MALE 2P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FLKD-02FGMS-GCP-215
ActiveAmphenol LTW
CONN PLUG MALE 2P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FLKD-02FGMS-GCP-215 |
|---|---|
| Applications | Testing Equipment & Measurement, Medical, Industrial, Telecommunications, Instrumentation |
| Backshell Material, Plating | Chrome, Copper Alloy |
| Cable Opening [Max] [diameter] | 0.264 in |
| Cable Opening [Max] [diameter] | 6.7 mm |
| Cable Opening [Min] [diameter] | 6.5 mm |
| Cable Opening [Min] [diameter] | 0.256 in |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 25 A |
| Fastening Type | Push-Pull |
| Features | Cable Clamp, Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | G |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Copper Alloy |
| Shell Size - Insert | D-2 |
| Shielding | Shielded |
| Voltage Rating | 700 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 47.48 | |
Description
General part information
FLKD-02FGMS Series
2 Position Circular Connector Plug, Male Pins Solder Cup
