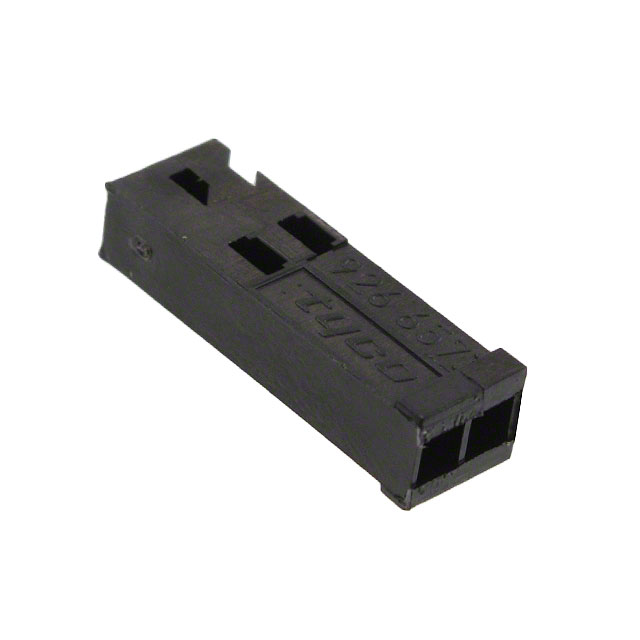

926657-2

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 2POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 2POS 2.54MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	926657-2	926657 Series

Color	Black	Black
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Features	-	Stackable
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT), Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	2 - 15
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in

CONN RCPT HSG 6POS 2.54MM

Part	Number of Positions	Contact Termination	Color	Insulation Material	Contact Type	Connector Type	Note	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Number of Rows	Features
TE Connectivity AMP Connectors 926657-6	6	Crimp	Black	Polybutylene Terephthalate (PBT)	Female Socket	Receptacle	Contacts Not Included	Free Hanging (In-Line)	-65 ░C	105 ░C	2.54 mm	0.1 in	1
TE Connectivity AMP Connectors 1-926657-5	15	Crimp	Black	Polybutylene Terephthalate (PBT), Glass Filled	Female Socket	Receptacle	Contacts Not Included	Free Hanging (In-Line)	-65 ░C	105 ░C	2.54 mm	0.1 in	1
TE Connectivity AMP Connectors 5-926657-2	2	Crimp	Black	Polybutylene Terephthalate (PBT), Glass Filled	Female Socket	Receptacle	Contacts Not Included	Free Hanging (In-Line)	-65 ░C	105 ░C	2.54 mm	0.1 in	1	Stackable
TE Connectivity AMP Connectors 926657-2	2	Crimp	Black	Polybutylene Terephthalate (PBT)	Female Socket	Receptacle	Contacts Not Included	Free Hanging (In-Line)	-65 ░C	105 ░C	2.54 mm	0.1 in	1
TE Connectivity AMP Connectors 1-926657-0	10	Crimp	Black	Polybutylene Terephthalate (PBT), Glass Filled	Female Socket	Receptacle	Contacts Not Included	Free Hanging (In-Line)	-65 ░C	105 ░C	2.54 mm	0.1 in	1
TE Connectivity AMP Connectors 926657-5		Crimp	Black	Polybutylene Terephthalate (PBT)	Female Socket	Receptacle	Contacts Not Included	Free Hanging (In-Line)	-65 ░C	105 ░C	2.54 mm	0.1 in	1
