PF1303/4 BK005

Active

ALPHA WIRE

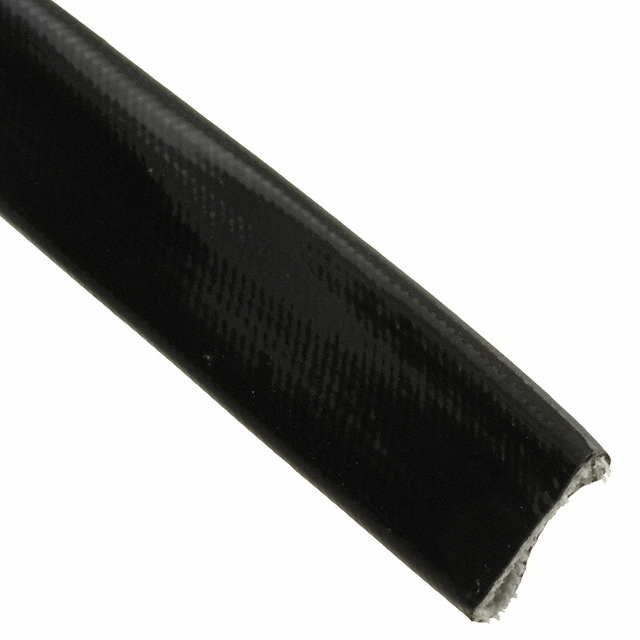

SLEEVING 0.75" ID FBRGLASS 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

SLEEVING 0.75" ID FBRGLASS 100'

Technical Specifications

Parameters and characteristics for this part

Specification	PF1303/4 BK005

Abrasion Protection	Abrasion Resistant, Fray Resistant
Color	Black
Diameter - Inside [diameter]	19.05 mm
Diameter - Inside [diameter]	0.75 in
Environment Protection	Corrosion Resistant
Heat Protection	Heat Resistant
Length	100 ft
Length	30.48 m
Liquid Protection	Oil Resistant
Material	Fiberglass, PVC Coated
Material Flammability Rating	UL VW-1
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Type	Sleeving, Insulated
Type Attributes	Convoluted - Braided
Wall Thickness [custom]	0.025 in
Wall Thickness [custom]	0.64 mm

SLEEVING 0.75" ID FBRGLASS 100'

Part	Material	Type Attributes	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Liquid Protection	Operating Temperature [Min]	Operating Temperature [Max]	Color	Length	Length	Abrasion Protection	Environment Protection	Heat Protection	Wall Thickness [custom]	Wall Thickness [custom]	Material Flammability Rating	Type
ALPHA WIRE PF1303/4 BK005	Fiberglass, PVC Coated	Convoluted - Braided	19.05 mm	0.75 in	Oil Resistant	-20 C	130 °C	Black	100 ft	30.48 m	Abrasion Resistant, Fray Resistant	Corrosion Resistant	Heat Resistant	0.025 in	0.64 mm	UL VW-1	Sleeving, Insulated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Fiberglass, PVC Coated Convoluted - Braided Sleeving, Insulated 0.750" (19.05mm) 100' (30.48m)
