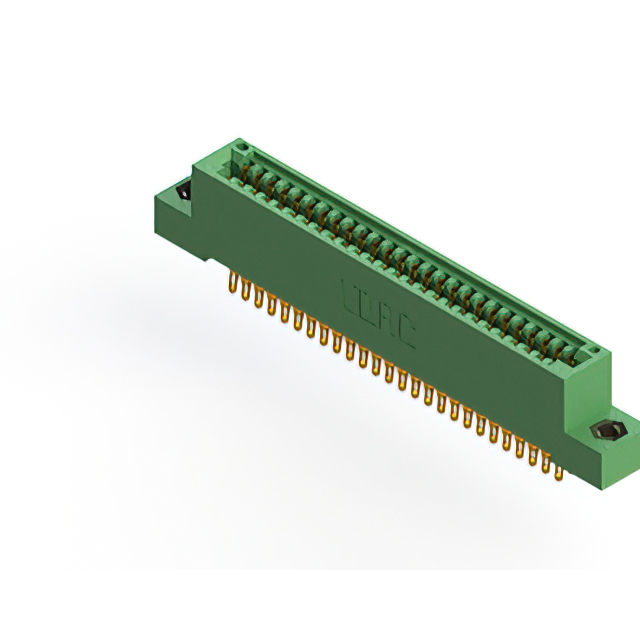

345-052-555-207
ActiveEDAC Inc.
2.54MM CLAMP BOARD 52P -40℃~+105℃ P=2.54MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
345-052-555-207
ActiveEDAC Inc.
2.54MM CLAMP BOARD 52P -40℃~+105℃ P=2.54MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-052-555-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 52 |
| Number of Positions/Bay/Row [custom] | 26 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
345-052 Series
...
| Part | Gender | Card Type | Features | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Number of Rows | Termination | Color | Number of Positions/Bay/Row [custom] | Contact Finish | Termination Rows | Contact Material | Read Out | Contact Type | Flange Feature | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | Non Specified - Dual Edge | Card Extender | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2 | Solder Eyelet(s) | Green | 26 | Gold | 2 | Copper Alloy | Dual | Cantilever | Flush Mount M3 Threaded Insert Top Opening | 52 | -40 °C | 105 ░C | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | ||
EDAC Inc. | Female | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2 | Solder | Green | 26 | Gold | 2 | Copper Alloy | Dual | Cantilever | Top Mount Opening Unthreaded | 52 | -40 °C | 105 ░C | Through Hole | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 0.156 in | 3.96 mm | |
EDAC Inc. | Female | Non Specified - Single Edge | Card Guides | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 1 | Wire Wrap | Green | 52 | Gold | 1 | Copper Alloy | Single | Cantilever | 4-40 Threaded Insert Top Mount Opening | 52 | -40 °C | 105 ░C | Through Hole | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | ||
EDAC Inc. | Female | Non Specified - Single Edge | Card Guides | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 1 | Wire Wrap | Green | 52 | Gold | 1 | Copper Alloy | Single | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 52 | -40 °C | 105 ░C | Through Hole Right Angle | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | ||
EDAC Inc. | Female | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 1 | Solder | Green | 52 | Gold | 1 | Copper Alloy | Single | Cantilever | 4-40 Threaded Insert Top Mount Opening | 52 | -40 °C | 105 ░C | Through Hole | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | |||
EDAC Inc. | Female | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2 | Solder | Green | 26 | Gold | 2 | Copper Alloy | Dual | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 52 | -40 °C | 105 ░C | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | |||
EDAC Inc. | Female | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2 | Wire Wrap | Green | 26 | Gold | 2 | Copper Alloy | Dual | Cantilever | M3 Threaded Insert Top Mount Opening | 52 | -40 °C | 105 ░C | Through Hole | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | |||
EDAC Inc. | Female | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 1 | Solder | Green | 52 | Gold | 1 | Copper Alloy | Single | Cantilever | Top Mount Opening Unthreaded | 52 | -40 °C | 105 ░C | Through Hole | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | 0.156 in | 3.96 mm | |
EDAC Inc. | Female | Non Specified - Dual Edge | Card Guides | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 2 | Solder | Green | 26 | Gold | 2 | Copper Alloy | Dual | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 52 | -40 °C | 105 ░C | Through Hole Right Angle | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in | ||
EDAC Inc. | Female | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | 1 | Solder | Green | 52 | Gold | 1 | Copper Alloy | Single | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 52 | -40 °C | 105 ░C | Through Hole Right Angle | 10 Áin | 0.25 Ám | 2.54 mm | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-052 Series
52 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
